803 dipper arm cylinder Diagram

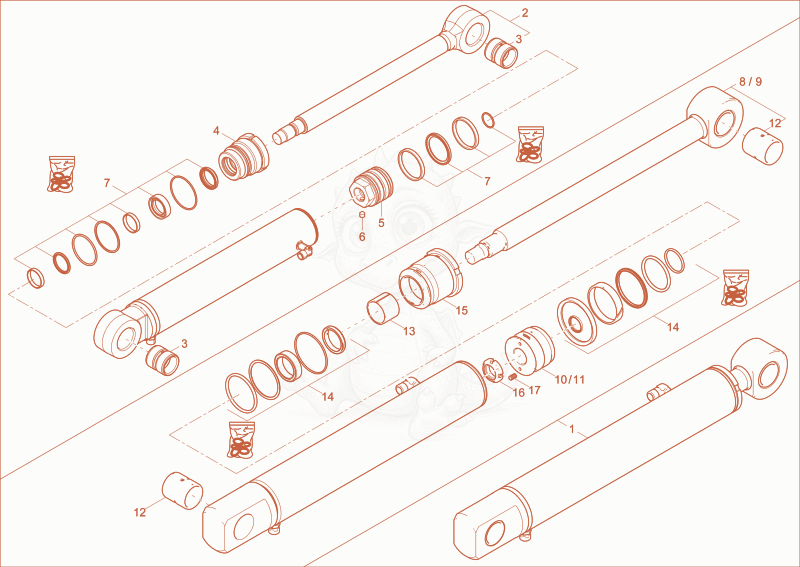

Exploded parts diagram of the dipper arm cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000458259Not stocked
dipper arm cylinder×1
21000159630Not stocked
piston rod×1
31000165322Price
STEEL BUSHING - 1000165322×2
41000364348Not stocked
guide bushing×1
51000159628Price
PISTON - 1000159628×1
61000128055Price
thread pin - 1000128055×1
71000364349Not stocked
cylinder seal kit×1
81000403702Not stocked
piston rod×1
91000478536Not stocked
piston rod×1
101000403743Price
Piston - 1000403743×1
111000478479Price
piston - 1000478479×1
121000403740Price
Bushing - 1000403740×2
131000403747Not stocked
slide bearing×1
141000403710Price
Seal kit - 1000403710×1
151000403745Not stocked
guide bushing×1
161000399498Price
Nut - 1000399498×1
171000015384Not stocked
thread pin×1
