803 swivel drive Diagram

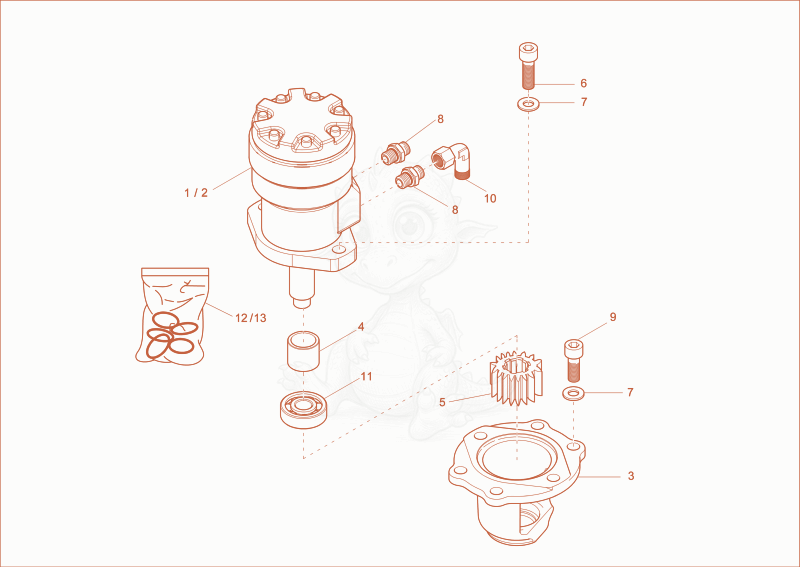

Exploded parts diagram of the swivel drive of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000149174Not stocked
swivel drive×1
21000254395Price
Swiveldrive 1000254395×1
31000505840Not stocked
bearing×1
41000150851Price
BUSHING - 1000150851×1
51000149202Price
CROWN WHEEL SWIVEL DRIVE - 1000149202×1
61000085511Price
cheese head screw M12x45 10.9Dacro500DIN - 1000085511×2
71000022017Not stocked
spring washer×6
81000083029Price
GE10LR1/4OROMDA3C - 1000083029×2
91000085510Price
allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×4
101000015510Not stocked
screw joint×1
111000325734Not stocked
ball bearing×1
121000240706Price
seal kit - 1000240706×1
131000254396Not stocked
seal kit×1
