803 telescope cylinder Diagram

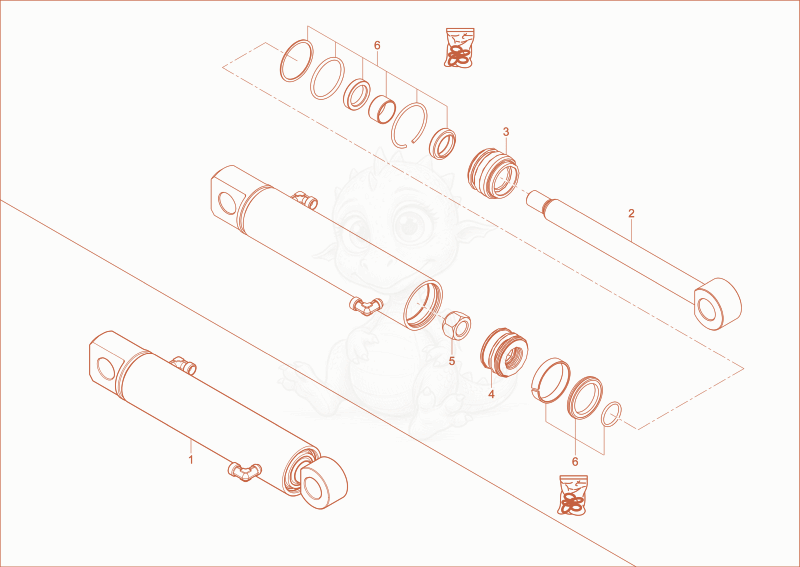

Exploded parts diagram of the telescope cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000259153Not stocked
telescope cylinder×1
21000159626Not stocked
piston rod×1
31000159625Not stocked
guide bushing×1
41000159603Not stocked
piston×1
51000159602Price
Nut - 1000159602×1
61000159606Not stocked
cylinder seal kit×1
