803

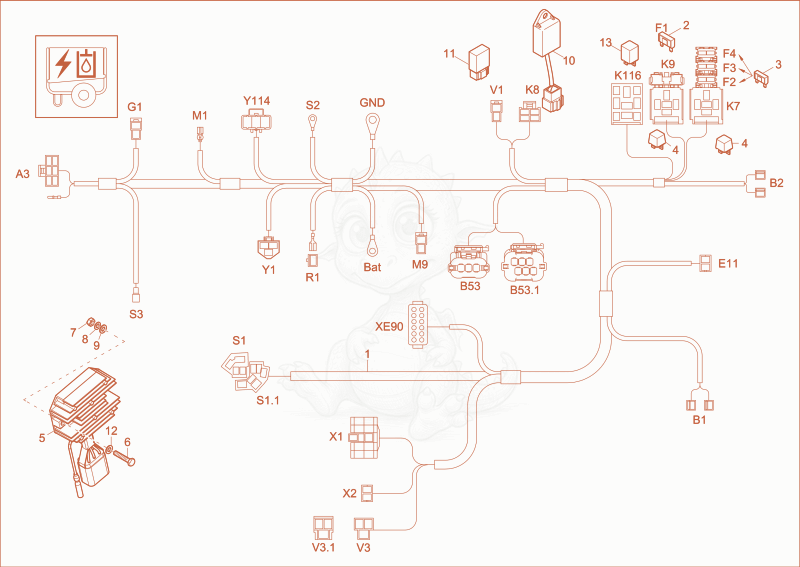

803 WIRE HARNESS CHASSIS, ENGINE (Option) Diagram
- 11000312404Not stockedwiring harness engine×1
- fuse - 1000015302×1
- fuse - 1000085682×3
- 41000353650Not stockedrelay×2
- TENSION REGULATOR - 1000145542×1
- hex screw - 1000085380×2
- HEXAGON NUT - 1000085581×2
- 81000082608Not stockedlock washer×2
- washer A 5,3 A2C DIN125 - 1000094962×2
- 101000005108Not stockedtime relay×1
- 111000012912Not stockeddiode×1
- washer X-1000092302 - 1000095342×2
- relais - 1000312266×1
- plug sleeve housing - 1000105098×1
- B11000027435Not stockedinsulating sleeve×2
- B21000027435Not stockedinsulating sleeve×2
- bushing housing - 1000260159×1
- bushing housing - 1000288405×1
- CABLE LUG - 1000096859×1
- E111000095336Not stockedplug sleeve housing×1
- Bracket - 1000027186×1
- Bracket - 1000027193×1
- Bracket - 1000027193×1
- Bracket - 1000027193×1
- plug sleeve housing - 1000101072×1
- cable lug - 1000107754×1
- HOUSING - 1000100546×1
- HOUSING - 1000100546×1
- K81000051986Not stockedplug sleeve housing×1
- HOUSING - 1000100546×1
- PLUG SLEEVE - 1000089776×1
- plug sleeve housing - 1000101072×1
- plug housing - 1000081742×1
- S11000027368Not stockedcentral plug×1
- PLUG - 1000027386×1
- S21000050027Not stockedcable lug×1
- S31000027384Not stockedround socket sleeve×1
- plug sleeve housing - 1000101072×1
- plug housing - 1000095338×1
- plug housing - 1000095338×1
- bushing housing - 1000095321×1
- X21000095336Not stockedplug sleeve housing×1
- bushing housing - 1000254182×1
- PLUG SLEEVE HOUSING - 1000167178×1
- Bushing Housing - 1000288403×1
