Excavator EZ38

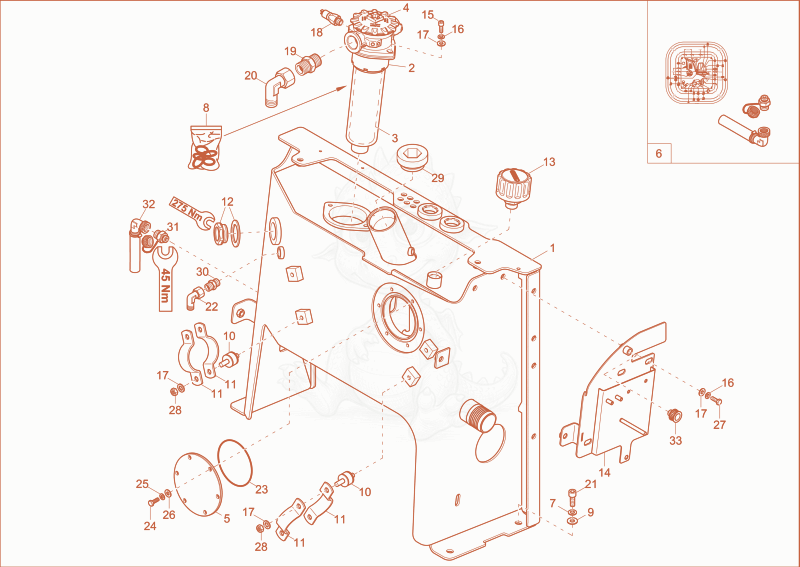

EZ38 hydraulic tank Diagram

Exploded parts diagram of the hydraulic tank of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000246304Not stocked
    hydraulic tank×1
  • 21000357345Not stocked
    reflux filter×1
  • 31000318994Not stocked
    reflux filter insert×1
  • 41000068821Not stocked
    cover back flow filter×1
  • 51000147659Price
    OIL TANK CAP - 1000147659×1
  • 61000237351Price
    service valve motor oil - 1000237351×1
  • 71000082609Price
    lock washer - 1000082609×4
  • 81000068817Not stocked
    seal kit back flow filter×1
  • 91000049219Not stocked
    washer×4
  • 101000147658Price
    METAL- RUBBER BUFFER - 1000147658×4
  • 111000147657Not stocked
    pipe clamp×4
  • 121000002989Not stocked
    view glass×1
  • 131000261957Price
    venting filter (0,2bar) - 1000261957×1
  • 141000276597Not stocked
    air guide plate×1
  • 151000015376Not stocked
    cheese head screw×2
  • 161000015438Not stocked
    lock washer×4
  • 171000015432Price
    washer 10,5 A2C DIN125 - 1000015432×8
  • 181000241241Price
    PRESSURE SWITCH - 1000241241×1
  • 191000015496Not stocked
    screw joint×1
  • 201000085091Price
    EW28LOMDA3C - 1000085091×1
  • 211000085510Price
    allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×4
  • 221000015512Not stocked
    screw joint×1
  • 231000015679Not stocked
    o-ring×1
  • 241000013008Not stocked
    hex screw×6
  • 251000015437Not stocked
    lock washer×6
  • 261000015431Not stocked
    washer×6
  • 271000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 281000015407Not stocked
    hexagon nut×4
  • 291000116833Price
    VSTI2ORA3C - 1000116833×1
  • 301000015494Not stocked
    screw joint×1
  • 311000322340Not stocked
    service valve×1
  • 321000234781Price
    drain coupling M22x1,5 90° - 1000234781×1
  • 331000150878Price
    LUG - 1000150878×1
