Excavator EZ38

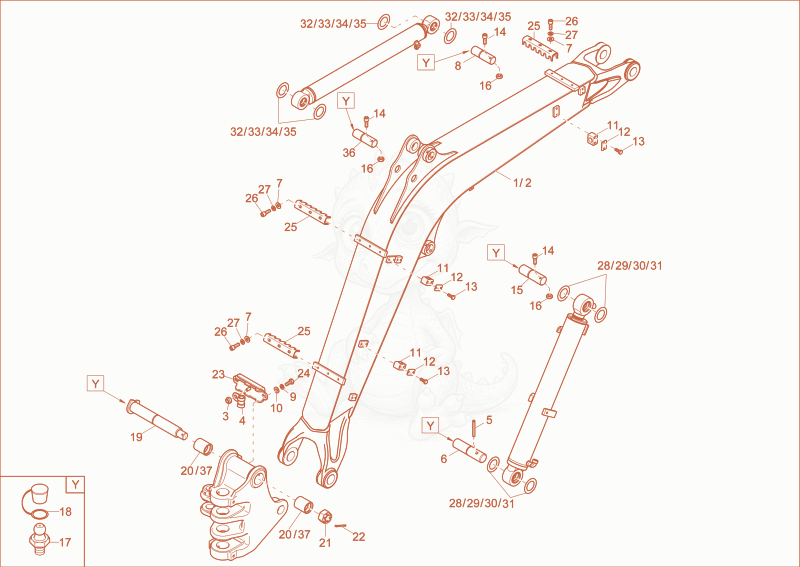

EZ38 lift arm Diagram
- 11000307029Not stockedlift arm×1
- Liftingarm 1000178532×1
- nut M10-8 A2C-DIN985 - 1000015408×1
- 41000062589Not stockedpipe clamp×1
- 51000049780Not stockedcotter pin×1
- Pin 1000296749×1
- 71000015431Not stockedwasher×9
- Pin 1000139674×1
- 91000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×5
- clamp body - 1000083263×6
- 121000015623Not stockedcover plate×3
- hex screw - 1000085310×12
- 141000015353Not stockedcheese head screw×3
- Pin 1000296591×1
- DIN985-M8-8-A2C - 1000015416×3
- 171000015476Not stockedgrease nipple×5
- 181000015480Not stockedcap grease nipple×5
- Pin 1000296540×1
- 201000083214Not stockedsteel bushing×2
- DIN935-M36-8-A2C - 1000015417×1
- COTTERPIN - 1000021603×1
- 231000351248Not stockedclamp bar×1
- 241000015367Not stockedhex screw×2
- PIPE CLAMP - 1000139782×3
- cheese head screw - 1000085498×9
- 271000015437Not stockedlock washer×9
- SHIM - 1000139780×1
- SHIM - 1000139779×1
- shim - 1000139778×1
- shim - 1000139777×1
- SHIM - 1000154275×1
- SHIM - 1000154276×1
- SHIM - 1000154278×1
- SHIM - 1000154280×1
- Pin 1000296750×1
- 371000352495Not stockedsteel bushing×2
