Excavator EZ38

EZ38 wiring harness cabin Diagram

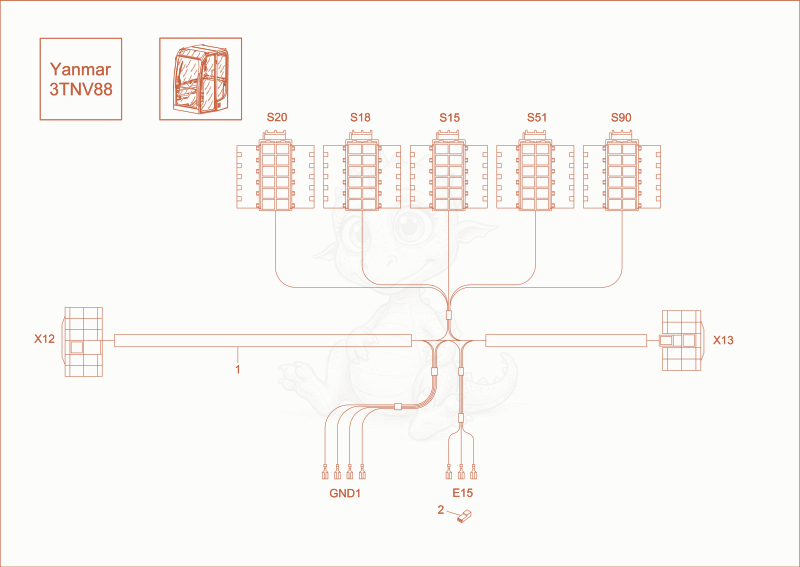

Exploded parts diagram of the wiring harness cabin of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000293041Not stocked
    wiring harness seat console×1
  • 21000027435Not stocked
    insulating sleeve×1
  • E151000027435Not stocked
    insulating sleeve×3
  • GND11000027435Not stocked
    insulating sleeve×4
  • S151000103949Price
    bushing housing - 1000103949×1
  • S171000103949Price
    bushing housing - 1000103949×1
  • S181000103949Price
    bushing housing - 1000103949×1
  • S201000103949Price
    bushing housing - 1000103949×1
  • S511000103949Price
    bushing housing - 1000103949×1
  • X121000095331Price
    plug sleeve housing - 1000095331×1
  • X131000095321Price
    bushing housing - 1000095321×1
