Excavator EZ38

EZ38 TANK LINES Diagram

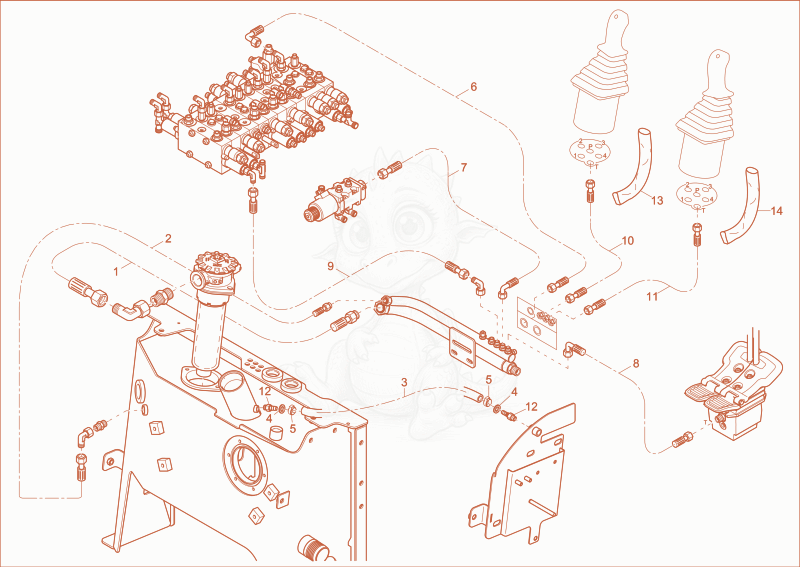

Exploded parts diagram of the TANK LINES of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000165513Not stocked
    Hose×1
  • 21000150000Price
    SLHYDR 1SC 13 PN15 0 PD15 0 L520,0 0 - 1000150000×1
  • 31000411932Not stocked
    fuel line×0.22
  • 41000124948Price
    screw seal - 1000124948×2
  • 51000267809Price
    clamp hose 15.3 - 1000267809×2
  • 61000077770Not stocked
    Hose×1
  • 71000076376Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1100 0 - 1000076376×1
  • 81000077949Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1900 0 - 1000077949×1
  • 91000146464Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L550,0 0 - 1000146464×1
  • 101000146514Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2300 0 - 1000146514×1
  • 111000076394Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2700 0 - 1000076394×1
  • 121000154360Price
    screw joint - 1000154360×2
  • 131000097905Price
    protecting hose - 1000097905×0.9
  • 141000097905Price
    protecting hose - 1000097905×0.9
