DV90-2

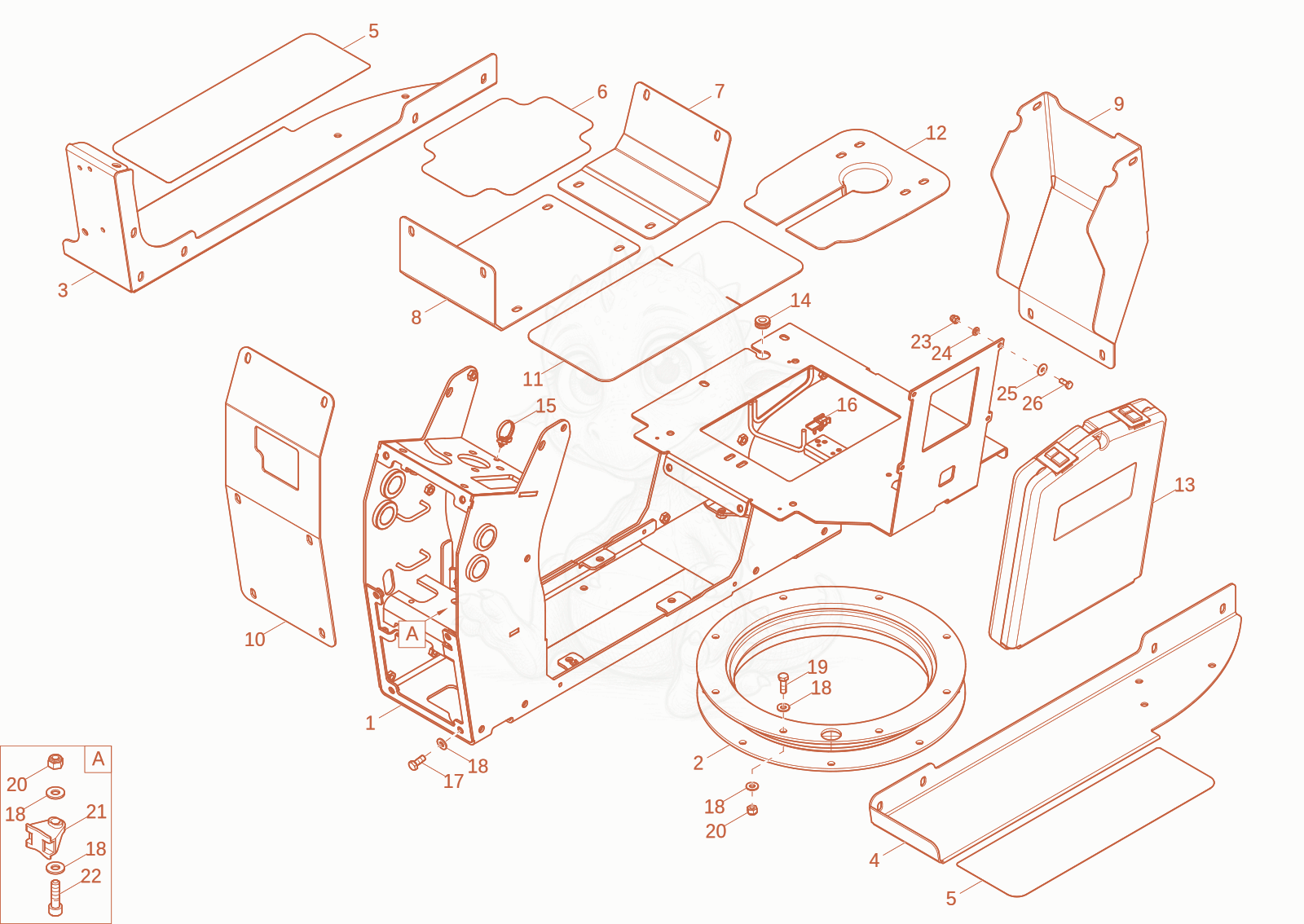

DV90-2 seat console Diagram

Exploded parts diagram of the seat console of a Wacker Neuson DV90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000499804Not stocked
    console×1
  • 21000378493Not stocked
    slewing ring×1
  • 31000445594Not stocked
    footboard×1
  • 41000445595Not stocked
    footboard×1
  • 51000465944Price
    mat - 1000465944×2
  • 61000468443Price
    mat - 1000468443×1
  • 71000445590Not stocked
    cover×1
  • 81000445589Not stocked
    cover×1
  • 91000445588Not stocked
    cover×1
  • 101000445587Not stocked
    plate×1
  • 111000468371Price
    Trim - 1000468371×1
  • 121000499750Not stocked
    seal×1
  • 131000081206Price
    documents box - 1000081206×1
  • 141000247639Price
    RUBBER SLEEVE 11/18/22-4 - 1000247639×1
  • 151000090083Not stocked
    cable strap×3
  • 161000293439Not stocked
    clip×2
  • 171000013008Not stocked
    hex screw×37
  • 181000015448Not stocked
    washer×57
  • 191000015343Not stocked
    hex screw×8
  • 201000357534Not stocked
    hexagon nut×10
  • 211000372106Price
    bracket - 1000372106×2
  • 221000013014Not stocked
    cheese head screw×2
  • 231000339041Not stocked
    nut×4
  • 241000015430Not stocked
    u-washer×4
  • 251000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×4
  • 261000085382Price
    HEX SCREW - 1000085382×4
