DV90-2

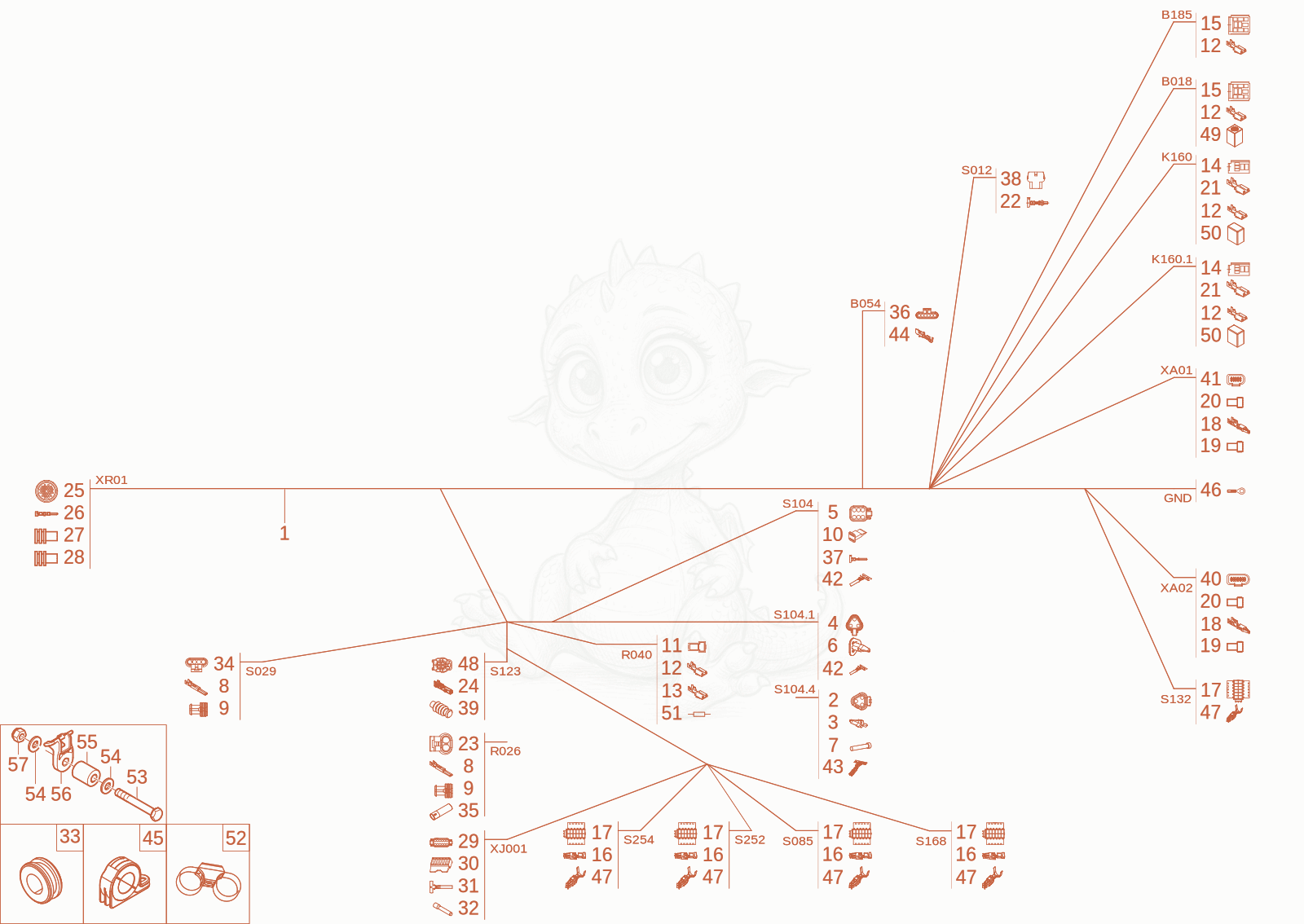

DV90-2 wiring harness turn plate (option) Diagram
- Wiring Harness - 1000522147×1
- 21000027394Not stockedpin housing×1
- wedge - 1000027400×1
- 41000027429Not stockedhousing×1
- 51000027431Not stockedbushing housing×1
- locking - 1000027433×1
- 71000030446Not stockedplug×1
- 81000051990Not stockedbushing contact×6
- 91000052672Not stockedseal×6
- plug locking - 1000085032×1
- plug sleeve housing - 1000095323×1
- plug sleeve - 1000095370×9
- 131000095371Not stockedplug sleeve×1
- sockets - 1000100593×2
- Plug housing - 1000101071×2
- Timer Contact - 1000103753×4
- bushing housing - 1000103949×5
- CONTACT - 1000104732×17
- seal - 1000104738×17
- lock plug - 1000104740×7
- plug sleeve - 1000106792×6
- BUSHING CONTACT - 1000107779×10
- plug bushing - 1000110449×1
- bushing contact - 1000127379×3
- Pin housing - 1000147270×1
- Pin contact - 1000147282×50
- Plug - 1000147335×1
- Seal - 1000147336×50
- 291000148250Not stockedplug bushing×1
- Pin housing - 1000148272×1
- bushing contact - 1000148274×10
- Plug - 1000161431×2
- RUBBER SLEEVE 11/18/22-4 - 1000247639×1
- plug bushing - 1000258052×1
- 351000398308Not stockedresistor×1
- 361000308534Not stockedbushing housing×1
- 371000309284Not stockedbushing contact×2
- 381000334439Not stockedbushing housing×1
- Plug - 1000344773×1
- 401000347542Not stockedhousing×1
- 411000347631Not stockedhousing×1
- 421000359612Not stockedplug connection×7
- 431000362407Not stockedpin contact×2
- 441000389900Not stockedplug bushing×6
- Ferrit - 1000397270×1
- 461000050027Not stockedcable lug×1
- 471000432365Not stockedtimer contact×28
- 481000474125Not stockedbushing housing×2
- BUZZER - 1000351008×1
- 501000333390Not stockedrelay×2
- diode - 1000352451×1
- 521000371366Not stockedcable strap×3
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
- 541000015448Not stockedwasher×2
- Sleeve - 1000439883×1
- 561000378385Not stockedsockets×1
- 571000357534Not stockedhexagon nut×1
