DV90-2

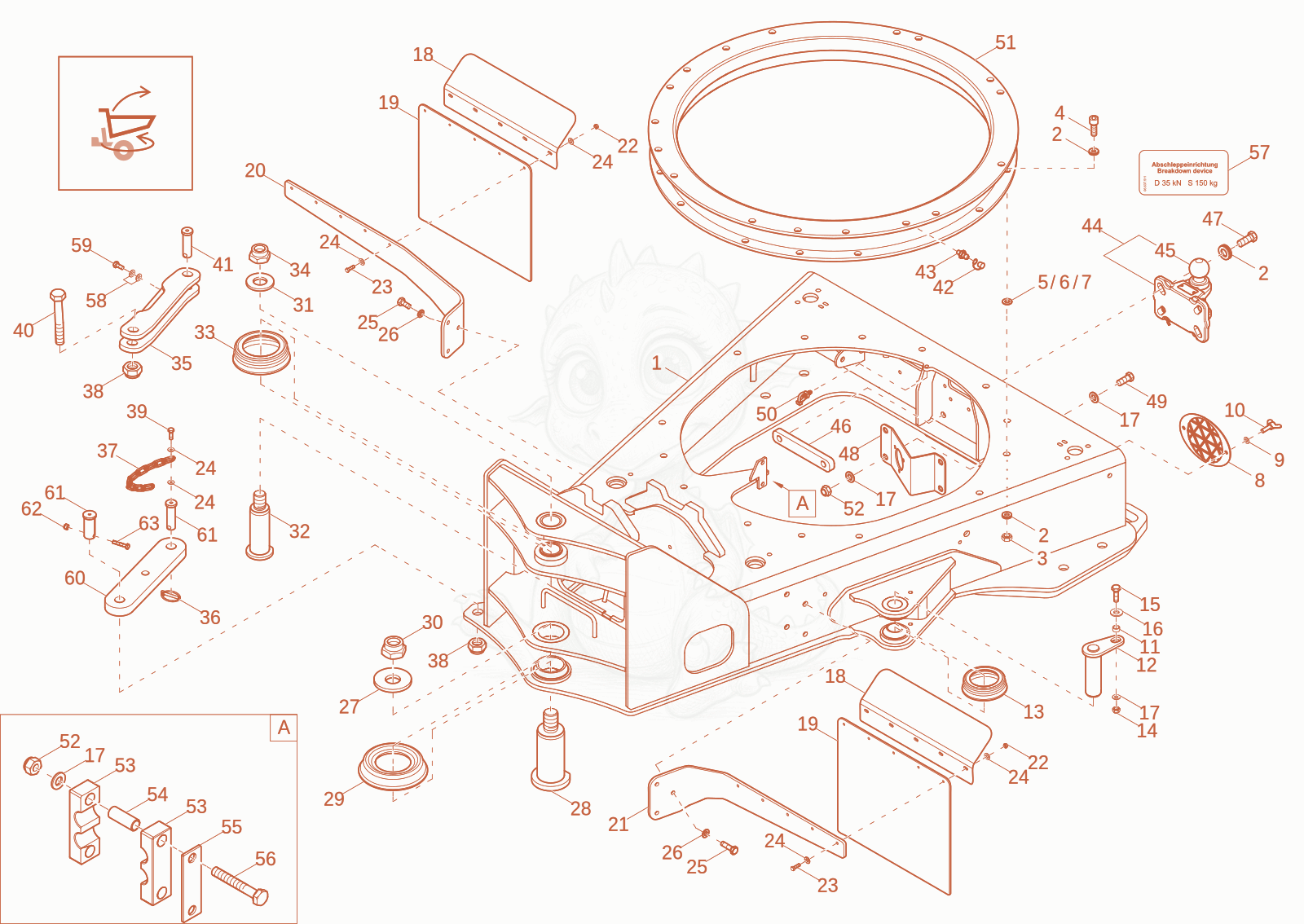

DV90-2 front frame (option) Diagram

Exploded parts diagram of the front frame (option) of a Wacker Neuson DV90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000505216Not stocked
    front frame×1
  • 21000015451Not stocked
    northlock disc×24
  • 31000015423Not stocked
    hexagon nut×14
  • 41000015383Not stocked
    cheese head screw×14
  • 51000344203Price
    spacer - 1000344203×5
  • 61000344204Price
    spacer - 1000344204×5
  • 71000344205Price
    spacer - 1000344205×5
  • 81000503602Not stocked
    light protection screen×2
  • 91000015431Not stocked
    washer×4
  • 101000048699Not stocked
    thumb screw×4
  • 111000154698Price
    WASHER - 1000154698×1
  • 121000383449Price
    pin - 1000383449×1
  • 131000351711Price
    bearing - 1000351711×1
  • 141000357534Not stocked
    hexagon nut×1
  • 151000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 161000015442Not stocked
    u-washer×1
  • 171000015432Price
    washer 10,5 A2C DIN125 - 1000015432×11
  • 181000383464Not stocked
    protection plate×2
  • 191000110235Price
    Dustcatch 1000110235×2
  • 201000402671Not stocked
    wheel cover×1
  • 211000402670Not stocked
    wheel cover×1
  • 221000357533Not stocked
    hexagon nut×10
  • 231000015340Not stocked
    hex screw×10
  • 241000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×24
  • 251000085420Price
    hex screw - 1000085420×6
  • 261000049219Not stocked
    washer×6
  • 271000383302Not stocked
    washer×1
  • 281000383301Price
    PIN - 1000383301×1
  • 291000350993Price
    seal - 1000350993×1
  • 301000383566Price
    nut - 1000383566×1
  • 311000403569Not stocked
    washer×1
  • 321000403568Price
    PIN - 1000403568×1
  • 331000403241Price
    seal - 1000403241×1
  • 341000388900Not stocked
    nut×1
  • 351000383427Not stocked
    buckle support×1
  • 361000015457Not stocked
    cotter pin×1
  • 371000097224Price
    CHAIN - 1000097224×0.35
  • 381000386501Price
    nut - 1000386501×1
  • 391000018400Not stocked
    hex screw×2
  • 401000396926Not stocked
    hex screw×1
  • 411000383448Price
    pin - 1000383448×1
  • 421000015480Not stocked
    cap grease nipple×4
  • 431000015476Not stocked
    grease nipple×4
  • 441000299920Price
    Trailercoupling 1000299920×1
  • 451000360212Not stocked
    ball pin×1
  • 461000466594Not stocked
    thread plate×2
  • 471000085430Price
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×4
  • 481000505974Price
    bracket - 1000505974×1
  • 491000015364Not stocked
    hex screw×4
  • 501000322839Not stocked
    fixing bracket×1
  • 511000503589Not stocked
    slewing ring×1
  • 521000357535Not stocked
    hexagon nut×6
  • 531000406358Not stocked
    rubber piece×2
  • 541000406359Price
    Sleeve - 1000406359×2
  • 551000406357Price
    plate - 1000406357×1
  • 561000085416Price
    6-Point screw M10x70-8.8 A2C-DIN933 - 1000085416×2
  • 571000526104Price
    STICKER - 1000526104×1
  • 581000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 591000018400Not stocked
    hex screw×1
  • 601000509912Not stocked
    buckle support×1
  • 611000550414Not stocked
    pin×2
  • 621000357533Not stocked
    hexagon nut×1
  • 631000015340Not stocked
    hex screw×1
