DV90-2

DV90-2 WIRE HARNESS ENGINE (Option) Diagram

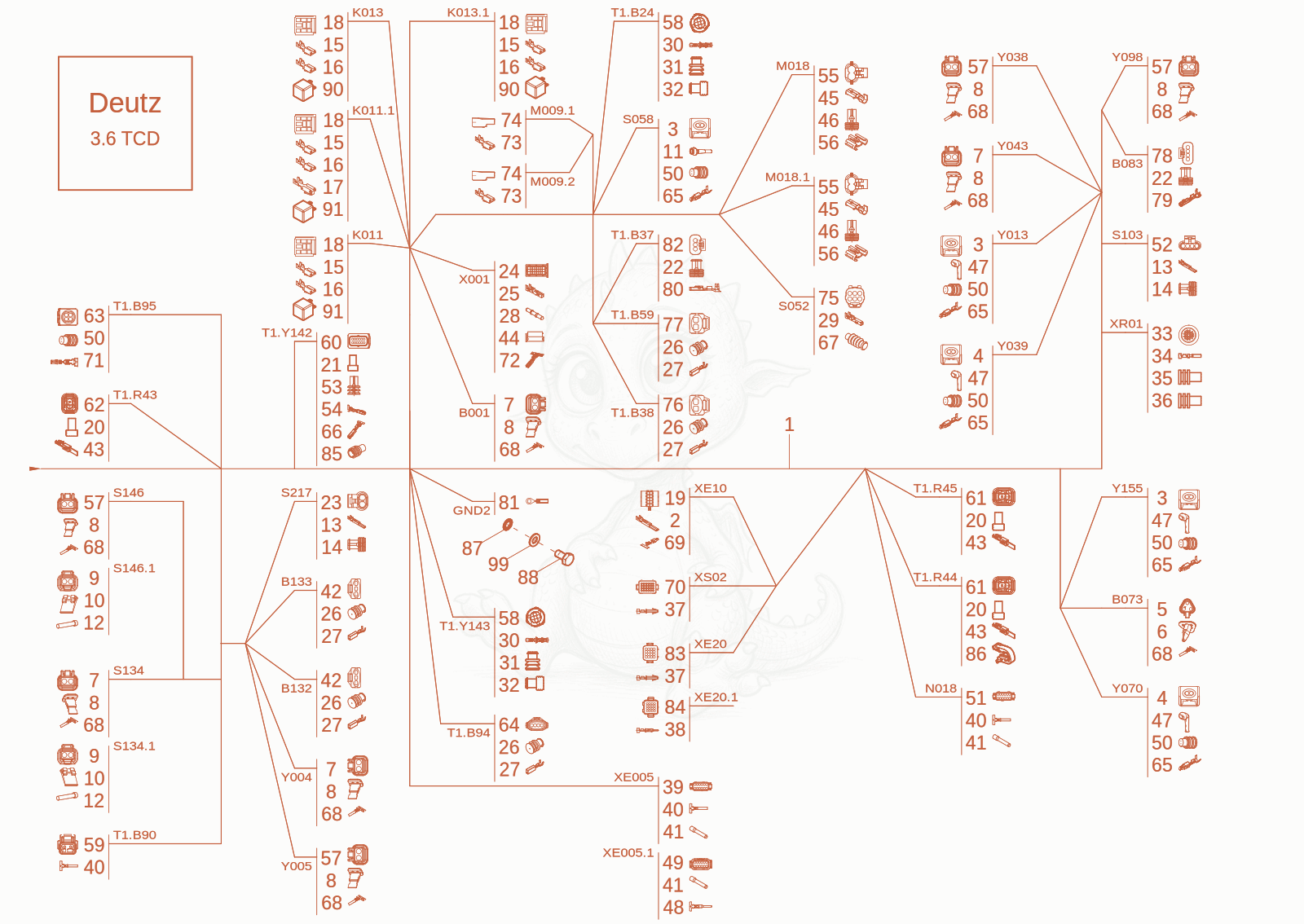

Exploded parts diagram of the WIRE HARNESS ENGINE (Option) of a Wacker Neuson DV90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000524656Not stocked
    main harness×1
  • 21000027179Not stocked
    timer contact×2
  • 31000027332Price
    housing - 1000027332×3
  • 41000027410Price
    Housing - 1000027410×2
  • 51000027429Not stocked
    housing×1
  • 61000027433Price
    locking - 1000027433×1
  • 71000027438Not stocked
    bushing housing×4
  • 81000027442Not stocked
    wedge×8
  • 91000027445Not stocked
    pin housing×2
  • 101000027449Not stocked
    housing×2
  • 111000027466Not stocked
    protecting cap×1
  • 121000030446Not stocked
    plug×4
  • 131000051990Not stocked
    bushing contact×6
  • 141000052672Not stocked
    seal×6
  • 151000095370Price
    plug sleeve - 1000095370×6
  • 161000095371Not stocked
    plug sleeve×8
  • 171000095372Price
    plug sleeve - 1000095372×2
  • 181000101071Price
    Plug housing - 1000101071×4
  • 191000104431Price
    bushing housing - 1000104431×1
  • 201000104739Price
    seal - 1000104739×6
  • 211000104740Price
    lock plug - 1000104740×2
  • 221000109459Price
    Seal - 1000109459×7
  • 231000110449Price
    plug bushing - 1000110449×1
  • 241000125826Price
    bushing housing - 1000125826×1
  • 251000125843Price
    BUSHING CONTACT - 1000125843×5
  • 261000126126Price
    Seal - 1000126126×14
  • 271000126127Price
    BUSHING CONTACT - 1000126127×14
  • 281000126304Not stocked
    plug×17
  • 291000127379Price
    bushing contact - 1000127379×5
  • 301000128771Price
    bushing contact - 1000128771×5
  • 311000128772Price
    Seal - 1000128772×5
  • 321000128773Price
    Plug - 1000128773×3
  • 331000147268Price
    BUSHING HOUSING - 1000147268×1
  • 341000147281Price
    BUSHING CONTACT - 1000147281×48
  • 351000147335Price
    Plug - 1000147335×3
  • 361000147336Price
    Seal - 1000147336×48
  • 371000147471Price
    BUSHING CONTACT - 1000147471×39
  • 381000147472Price
    Pin contact - 1000147472×8
  • 391000148271Price
    Pin housing - 1000148271×1
  • 401000148274Price
    bushing contact - 1000148274×17
  • 411000161431Price
    Plug - 1000161431×19
  • 421000168235Price
    bushing housing - 1000168235×2
  • 431000170628Price
    Pin contact - 1000170628×6
  • 441000191394Price
    plug locking - 1000191394×1
  • 451000191403Price
    bushing contact - 1000191403×4
  • 461000191461Price
    Seal - 1000191461×4
  • 471000228723Price
    RUBBER CAP - 1000228723×4
  • 481000236298Price
    pin contact - 1000236298×2
  • 491000240116Price
    Pin housing - 1000240116×1
  • 501000246747Price
    seal - 1000246747×14
  • 511000254182Price
    bushing housing - 1000254182×1
  • 521000258052Price
    plug bushing - 1000258052×1
  • 531000260162Price
    seal - 1000260162×8
  • 541000260164Price
    Tube - 1000260164×8
  • 551000263990Price
    bushing housing - 1000263990×2
  • 561000263991Price
    LOCKING - 1000263991×2
  • 571000270365Price
    Plug Deutsch - 1000270365×4
  • 581000322614Not stocked
    plug bushing×2
  • 591000333855Not stocked
    bushing housing×1
  • 601000333857Not stocked
    bushing housing×1
  • 611000333858Not stocked
    plug housing×2
  • 621000333859Not stocked
    plug housing×1
  • 631000333860Price
    Plug - 1000333860×1
  • 641000333924Price
    Plug - 1000333924×1
  • 651000334041Not stocked
    timer contact×10
  • 661000338903Not stocked
    bushing contact×2
  • 671000344773Price
    Plug - 1000344773×1
  • 681000359612Not stocked
    plug connection×19
  • 691000362527Not stocked
    bushing contact×4
  • 701000363132Not stocked
    bushing housing×1
  • 711000370413Not stocked
    bushing contact×4
  • 721000380382Not stocked
    bushing contact×2
  • 731000383149Not stocked
    bushing contact×2
  • 741000383151Not stocked
    bushing housing×2
  • 751000398396Not stocked
    bushing housing×1
  • 761000404126Not stocked
    bushing housing×1
  • 771000404137Not stocked
    bushing housing×1
  • 781000409850Not stocked
    bushing housing×1
  • 791000410245Not stocked
    bushing contact×4
  • 801000410929Not stocked
    bushing contact×3
  • 811000346811Not stocked
    cable lug×1
  • 821000438698Not stocked
    bushing housing×1
  • 831000467310Not stocked
    bushing housing×1
  • 841000363133Not stocked
    pin housing×1
  • 851000468063Not stocked
    cable junction×2
  • 861000333992Price
    Clip - 1000333992×3
  • 871000095354Price
    Lock washer DIN6797 A10,5 - 1000095354×1
  • 881000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 891000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 901000353650Not stocked
    relay×2
  • 911000353650Not stocked
    relay×2
