DV90-2

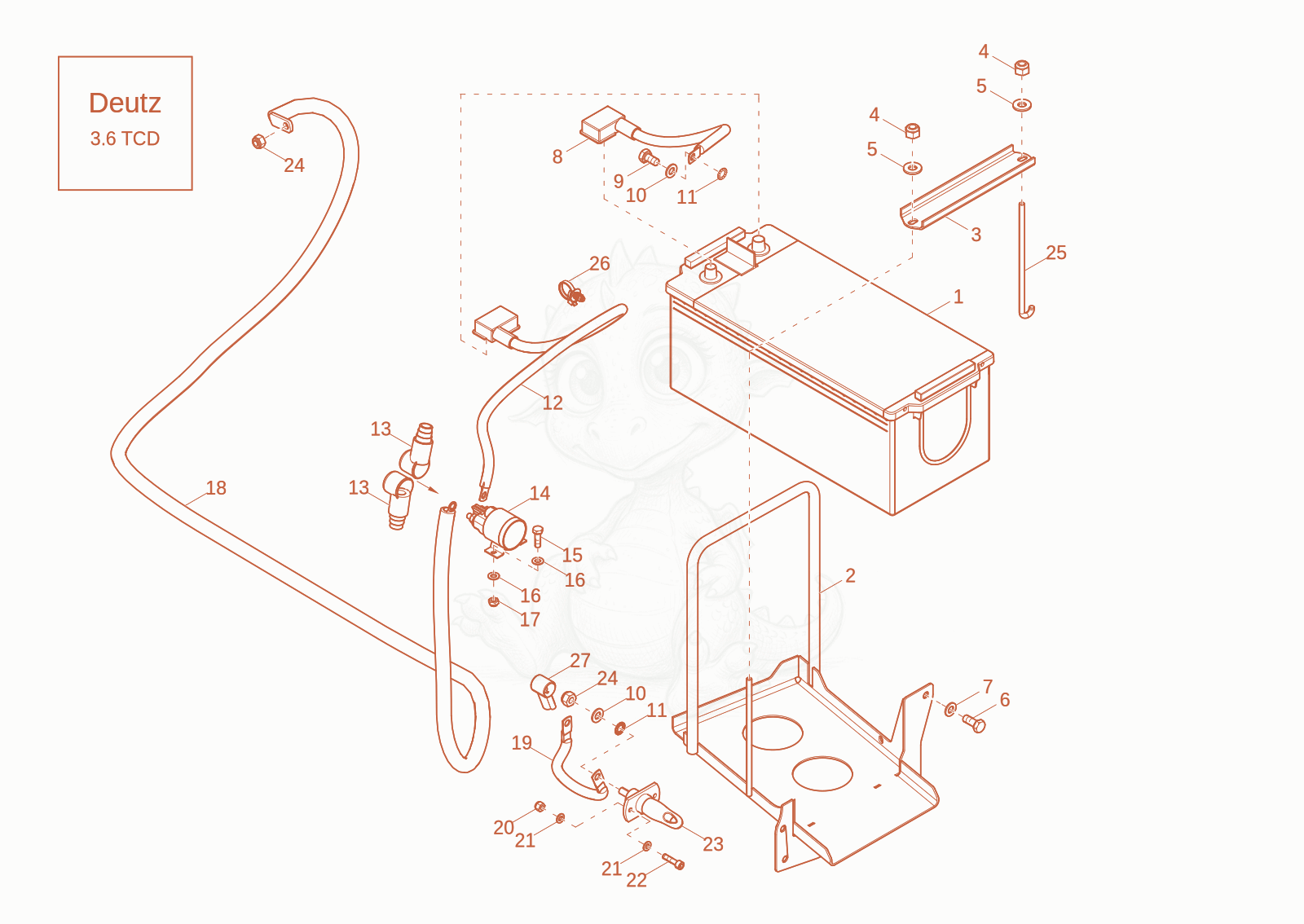

DV90-2 battery (Option) Diagram
- 11000428873Not stockedbattery×1
- Battery console - 1000508101×1
- holder - 1000479478×1
- 41000357534Not stockedhexagon nut×2
- 51000015448Not stockedwasher×2
- 61000013008Not stockedhex screw×4
- 71000015431Not stockedwasher×4
- 81000370732Not stockedbattery cable×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- washer 10,5 A2C DIN125 - 1000015432×2
- Lock washer DIN6797 A10,5 - 1000095354×2
- 121000370731Not stockedbattery cable×1
- 131000063176Not stockedprotecting cap×2
- relay - 1000346782×1
- hex screw - 1000085378×2
- washer A 5,3 A2C DIN125 - 1000094962×4
- HEXAGON NUT - 1000085587×2
- 181000439107Not stockedplus cable×1
- 191000480589Not stockedplus cable×1
- 201000357533Not stockedhexagon nut×2
- 211000015430Not stockedu-washer×4
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
- plug - 1000297164×1
- 241000357535Not stockedhexagon nut×2
- 251000412808Not stockedbracket battery×1
- 261000375997Not stockedfixing bracket×2
- protecting cap starter cable - 1000081683×1
