WN Excavator 14504

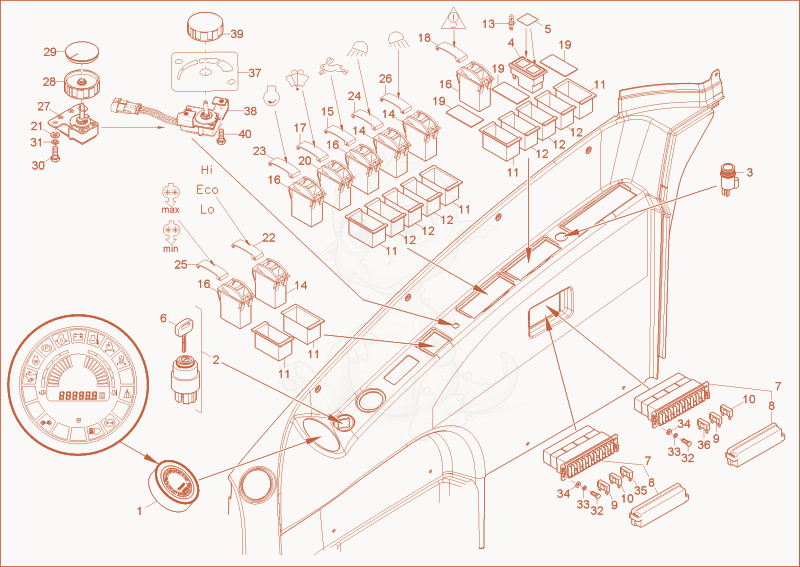

14504 instrument panel Diagram
- indicator instrument - 1000177723×1
- Ignition lock-R-1000125516 - 1000184001×1
- 31000069027Not stockedcigaret lighter×1
- telltale - 1000027120×1
- 51000022381Not stockedsymbol red×2
- EZ17 Key without cap - 1000184819×1
- FUSE BOX - 1000124067×2
- cover fuse box - 1000124068×2
- fuse - 1000085682×8
- FUSE - 1000085683×5
- 111000027168Not stockedswitch frame×6
- 121000027178Not stockedswitch frame×6
- bulb - 1000001518×2
- 141000353588Not stockedtilt switch×3
- SYMBOL HIGH SPEED - 1000098306×1
- 161000353495Not stockedtilt switch×4
- symbol wiper - 1000098303×1
- symbol - 1000164610×1
- 191000027006Not stockedblind cover×3
- 201000353601Not stockedfeeler×1
- 211000015430Not stockedu-washer×2
- 221000257569Not stockedsymbol pump regulation×1
- symbol - 1000178839×1
- symbol headlight - 1000096654×1
- SYMBOL - 1000257570×1
- 261000052361Not stockedsymbol×1
- 271000189654Not stockedperformance control×1
- 281000190033Not stockedrotary knob×1
- 291000189951Not stockedcover×1
- HEX SCREW - 1000085382×2
- 311000015436Not stockedlock washer×2
- hex screw - 1000085375×4
- lock washer - 1000082612×4
- washer 4,3 DIN125 - 1000094961×4
- fuse - 1000052490×2
- FUSE - 1000085684×1
- 371000263665Not stockedplate×1
- 381000265991Not stockedperformance control×1
- 391000266528Not stockedrotary knob×1
- screw M6x12 ISO7380-2 - 1000165459×2
