WN Excavator 14504

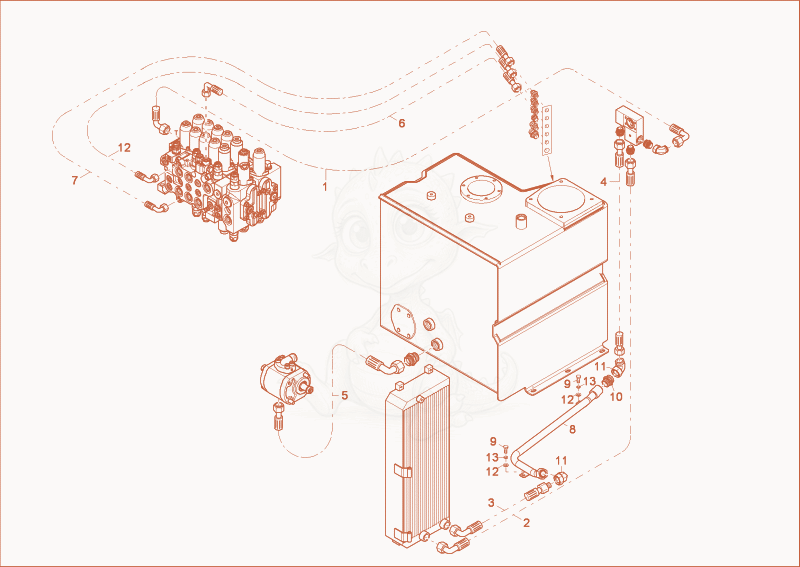

14504 TANK LINES 2 Diagram

Exploded parts diagram of the TANK LINES 2 of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000190806Price
    Slhydr1Sc32Pn3590Pn3590L43000 1000190806×1
  • 21000190804Price
    Slhydr1Sc32Pn3590Pn350L24000 1000190804×1
  • 31000242034Price
    Slhydr1Sc32Pn3590Pd350L49000 1000242034×1
  • 41000233292Price
    Slhydr1Sc32Pn350Pn350L80000 1000233292×1
  • 51000248702Not stocked
    Hose×1
  • 61000021508Not stocked
    Hose×1
  • 71000076334Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L850,0 0 - 1000076334×2
  • 81000181402Price
    Pipeline 1000181402×1
  • 91000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 101000082927Price
    GE35LREDOMDA3C - 1000082927×1
  • 111000085113Price
    EW35LOMDA3C - 1000085113×2
  • 121000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 131000015438Not stocked
    lock washer×2
