WN Excavator 14504

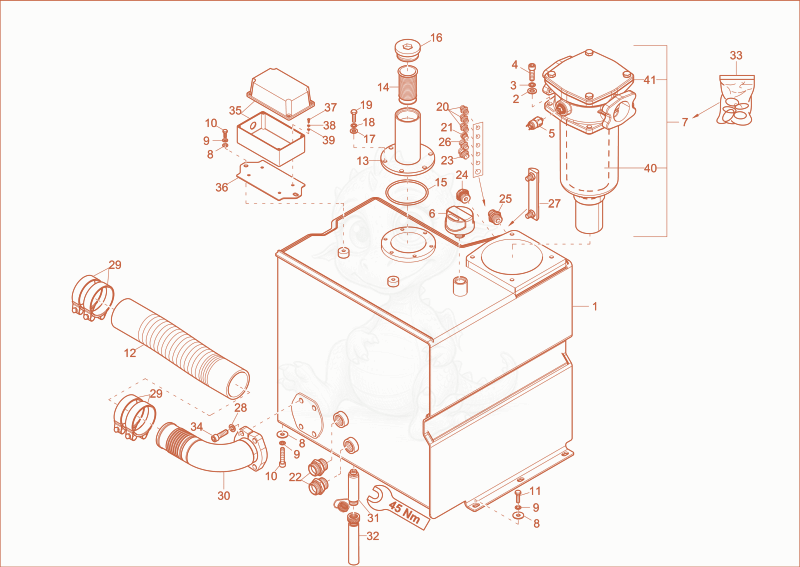

14504 hydraulic tank Diagram
- 11000283744Not stockedhydraulic tank×1
- 21000049219Not stockedwasher×4
- lock washer - 1000082609×4
- allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×4
- PRESSURE SWITCH - 1000249975×1
- venting filter (0,2bar) - 1000261957×1
- Refluxfilter 1000186223×1
- Washer 10,5 St A2C - 1000092303×5
- 91000015438Not stockedlock washer×5
- cheese head screw - 1000085504×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
- 121000180122Not stockedsuction hose×1
- Oiltankcap 1000159450×1
- oil screen - 1000142639×1
- 151000015679Not stockedo-ring×1
- VSTI2ORA3C - 1000116833×1
- washer 10,5 A2C DIN125 - 1000015432×6
- 181000015438Not stockedlock washer×6
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
- 201000015488Not stockedscrew joint×3
- 211000022438Not stockedscrew joint×1
- 221000015496Not stockedscrew joint×2
- 231000015533Not stockedscrew joint×1
- GE18LR1/2EDOMDA3C - 1000082979×1
- GE15LR3/4EDOMDA3C - 1000085074×1
- GE12LR1/4EDOMDA3C - 1000085128×1
- 271000012521Not stockedoil level indic×1
- 281000022017Not stockedspring washer×4
- 291000018528Not stockedhose clamp×4
- 301000187107Not stockedsuction flange×1
- 311000322338Not stockedservice valve×1
- SKARKE 4022G75 - 1000272804×1
- 331000062855Not stockedseal kit back flow filter×1
- 341000022173Not stockedcheese head screw×4
- HOUSING - 1000182932×1
- bracket relay box - 1000125645×1
- hex screw - 1000085377×4
- 381000082608Not stockedlock washer×4
- washer X-1000092302 - 1000095342×4
- 401000002077Not stockedreflux filter insert×1
- O-RING - 1000309063×1
