WN Excavator 14504

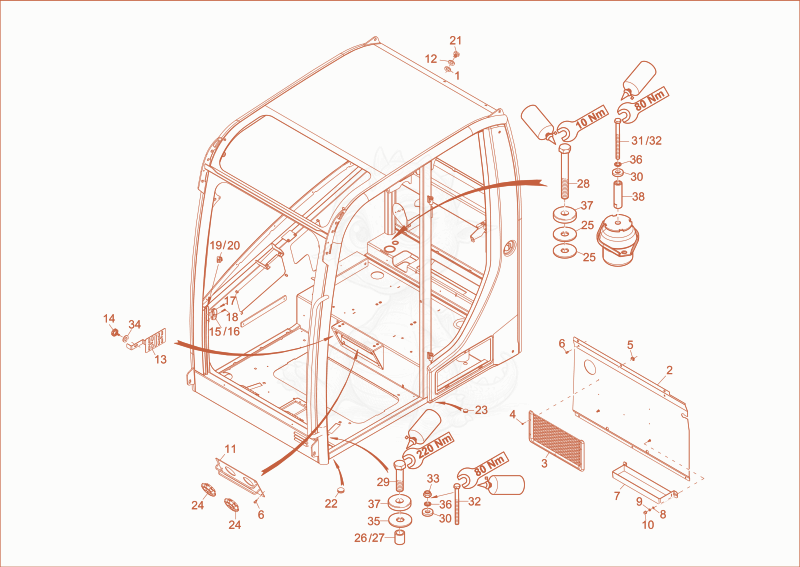

14504 CABIN FRAME 2 Diagram
- Washer (Polyamid) - 1000093520×1
- 21000246590Not stockedcover×1
- net - 1000168897×1
- 41000085545Not stockedflat head screw×5
- cage nut - 1000251957×3
- SCREW - 1000222686×4
- BRACKET - 1000250994×1
- washer M6,4-DIN134 - 1000094966×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- cover cap - 1000073525×2
- 111000246634Not stockedcover×1
- 121000015448Not stockedwasher×1
- 131000246589Not stockedslide×1
- 141000061271Not stockedgrooved screw×1
- 151000003866Not stockedcatch-rests×1
- 161000003867Not stockedcatch-rests×1
- 171000015395Not stockedovalhead screw×2
- ovalhead screw - 1000124798×2
- rubber seal - 1000241675×1
- rubber seal - 1000241676×1
- 211000047883Not stockedhex screw×1
- blind plug - 1000075523×5
- blind plug - 1000255254×1
- heater nozzle - 1000102342×2
- rubber disc - 1000184712×4
- 261000251137Not stockedsleeve×2
- sleeve - 1000273427×2
- hex screw - 1000163520×2
- 291000047326Not stockedhex screw×2
- WASHER - 1000085610×4
- hex screw - 1000085362×2
- hex screw - 1000085404×2
- 331000020127Not stockedhexagon nut×2
- 341000015431Not stockedwasher×1
- rubber disc - 1000273423×2
- lock washer - 1000082609×4
- WASHER - 1000184713×4
- bushing - 1000277099×2
