WN Excavator 14504

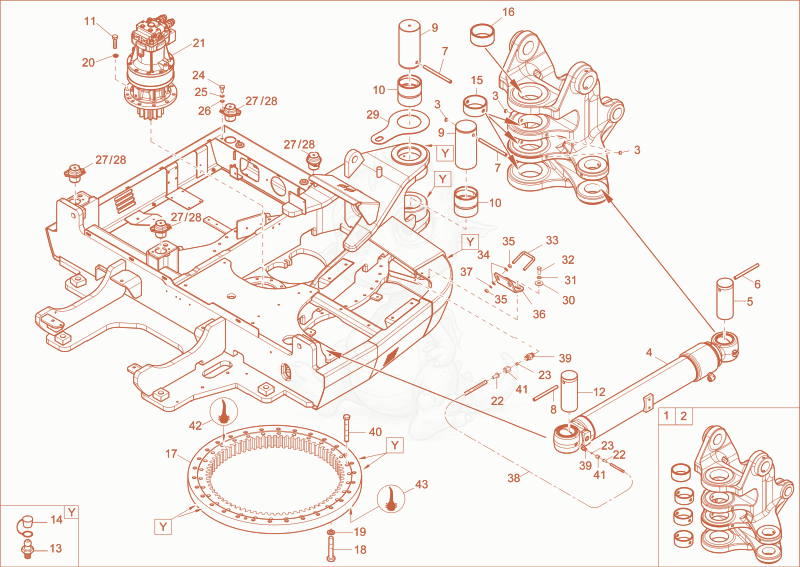

14504 chassis Diagram
- 11000323009Not stockedswivel console premounted×1
- 21000323121Not stockedswivel console premounted×1
- PVC Plug D25 - 1000301727×4
- Boomoffsetcylinderet145 1000176894×1
- Pin 1000177331×1
- COTTER PIN - 1000098199×1
- cotter pin - 1000124475×2
- cotter pin - 1000110018×1
- Pin 1000177121×2
- Steelbushing 1000302913×2
- 111000047863Not stockedhex screw×10
- Pin 1000181328×1
- grease nipple M10x1 - 1000082805×7
- 141000015480Not stockedcap grease nipple×7
- Steelbushing 1000181649×3
- Steelbushing 1000188861×1
- 171000174405Not stockedslewing ring×1
- 181000047510Not stockedhex screw×40
- WASHER - 1000020820×40
- 201000015451Not stockednorthlock disc×10
- Swiveldrive 1000179721×1
- plug sleeve - 1000152581×2
- D6LL - 1000015537×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
- 251000015438Not stockedlock washer×8
- washer 10,5 A2C DIN125 - 1000015432×8
- 271000067554Not stockedhydro.bearing×4
- hydro.bearing - 1000273067×4
- wear sheet metal - 1000187003×1
- Washer 10,5 St A2C - 1000092303×2
- 311000015438Not stockedlock washer×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- closing handle - 1000143710×1
- 341000015431Not stockedwasher×4
- 351000013021Not stockedhexagon nut×4
- HINGE ANGLE - 1000181379×1
- 371000015437Not stockedlock washer×2
- lubrication line - 1000304322×1.45
- GE06LLM10X1A3CX - 1000083092×2
- 401000047509Not stockedhex screw×40
- 411000015536Not stockedunion nut×2
- gasket slewing gear - 1000097244×3.5
- gasket slewing gear - 1000097244×3.5
