WN Excavator 14504

14504 fuel system Diagram

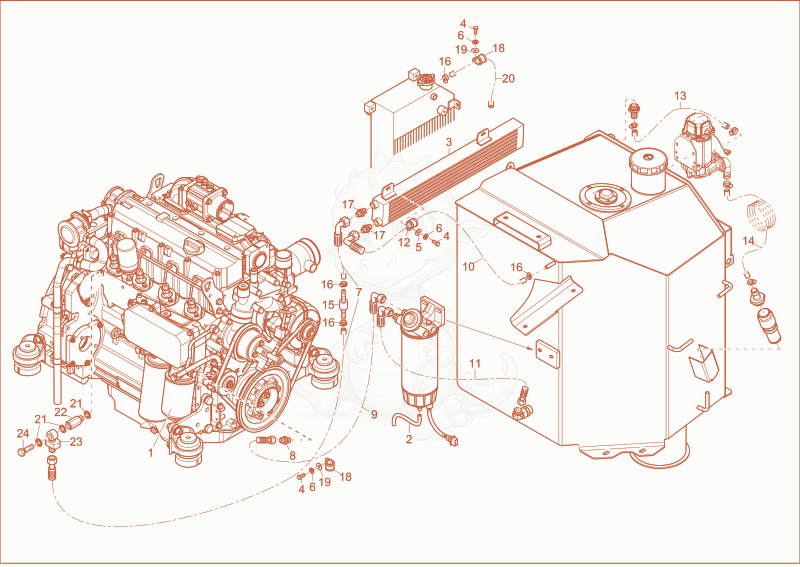

Exploded parts diagram of the fuel system of a Wacker Neuson 14504, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000172882Price
    FUEL FILTER - 1000172882×1
  • 21000147636Not stocked
    fuel line×0.4
  • 31000179930Price
    Dieselcooler 1000179930×1
  • 41000013008Not stocked
    hex screw×4
  • 51000013027Not stocked
    washer×2
  • 61000015437Not stocked
    lock washer×4
  • 71000181594Not stocked
    fuel line×1
  • 81000015492Price
    GE12LREDOMDA3C - 1000015492×1
  • 91000181593Not stocked
    fuel line×1
  • 101000181591Not stocked
    fuel line×1
  • 111000181592Not stocked
    fuel line×1
  • 121000083248Price
    hose clamp RSGU 1 23/20 - 1000083248×2
  • 131000117960Price
    suction hose diesel - 1000117960×1
  • 141000117960Price
    suction hose diesel - 1000117960×3.5
  • 151000170896Price
    NON RETURN VALVE - 1000170896×1
  • 161000124859Not stocked
    hose clamp×4
  • 171000015491Not stocked
    screw joint×2
  • 181000062589Not stocked
    pipe clamp×2
  • 191000015431Not stocked
    washer×2
  • 201000147636Not stocked
    fuel line×1.8
  • 211000135390Price
    seal ring - 1000135390×3
  • 221000135474Price
    distance piece - 1000135474×1
  • 231000135473Price
    ring piece - 1000135473×1
  • 241000135471Price
    Valve - 1000135471×1
