WL110

WL110(WRL90-05) fuel system Diagram

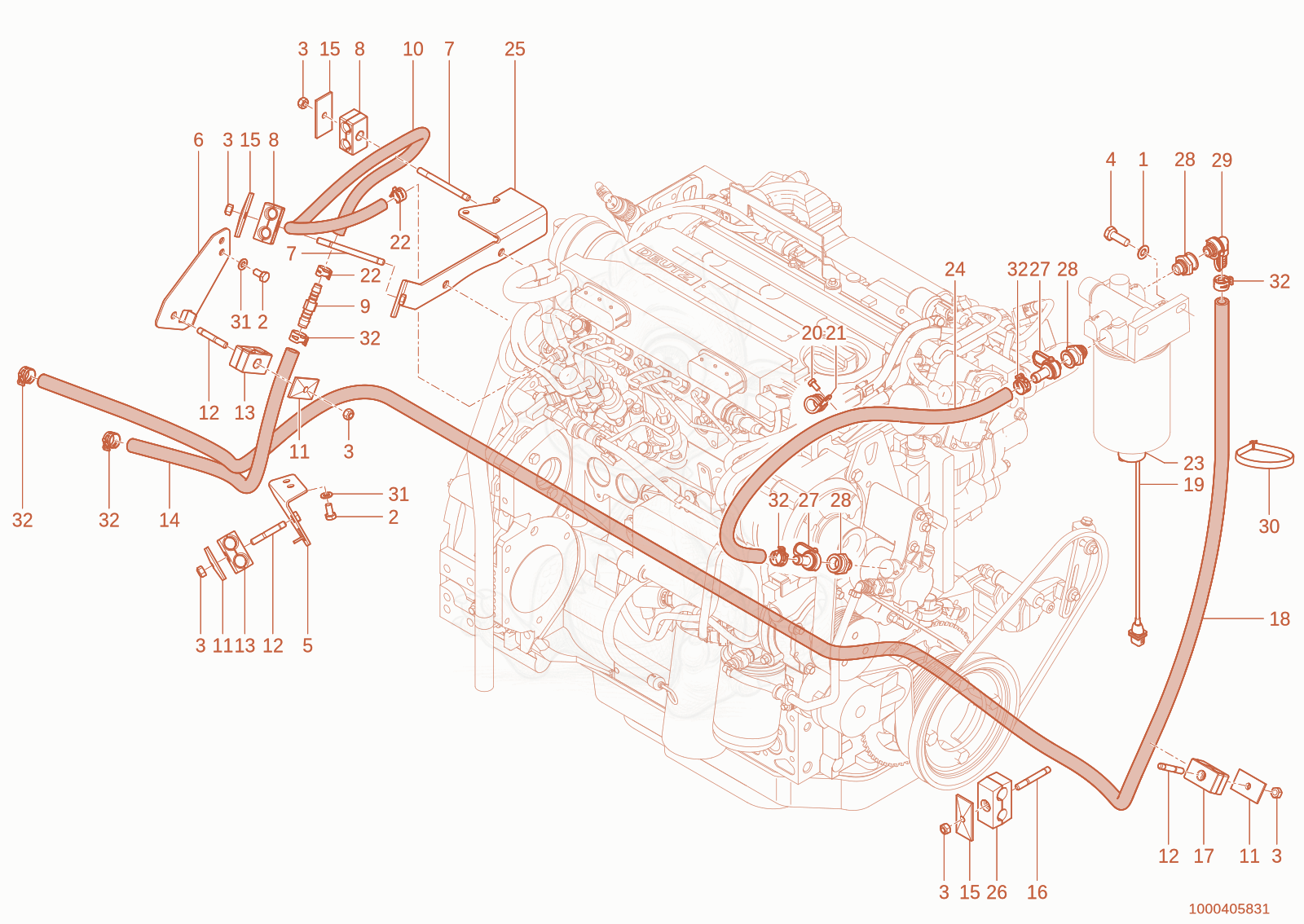

Exploded parts diagram of the fuel system of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000092291Price
    WASHER - 1000092291×2
  • 21000019136Not stocked
    hex screw×4
  • 31000013022Not stocked
    hexagon nut×6
  • 41000015364Not stocked
    hex screw×2
  • 51000426689Price
    Bracket - 1000426689×1
  • 61000373967Price
    Bracket - 1000373967×1
  • 71000048898Not stocked
    screw×2
  • 81000031999Price
    CLAMP - 1000031999×2
  • 91000300661Price
    reduction - 1000300661×1
  • 101000386618Not stocked
    fuel line×1.02
  • 111000031230Not stocked
    cover plate×3
  • 121000048892Not stocked
    stud×3
  • 131000031626Price
    CLAMP - 1000031626×2
  • 141000386617Not stocked
    fuel line×1.15
  • 151000031245Not stocked
    cover plate×3
  • 161000048894Not stocked
    stud×1
  • 171000031749Price
    CLAMP - 1000031749×1
  • 181000386617Not stocked
    fuel line×3.1
  • 191000281594Price
    Sensor cable - 1000281594×2
  • 201000020553Not stocked
    hex screw×1
  • 211000107382Price
    CLAMP - 1000107382×1
  • 221000282350Not stocked
    clamp×2
  • 231000281595Price
    SEAL - 1000281595×1
  • 241000386617Not stocked
    fuel line×0.8
  • 251000372130Not stocked
    hose guide×1
  • 261000031780Price
    CLAMP - 1000031780×1
  • 271000382785Not stocked
    end piece×2
  • 281000382787Price
    ADAPTER - 1000382787×3
  • 291000382784Not stocked
    end piece×1
  • 301000090012Price
    CABLE STRAP - 1000090012×1
  • 311000015431Not stocked
    washer×4
  • 321000133211Price
    clamp - 1000133211×6
