WL110

WL110(WRL90-05) LEVER Diagram

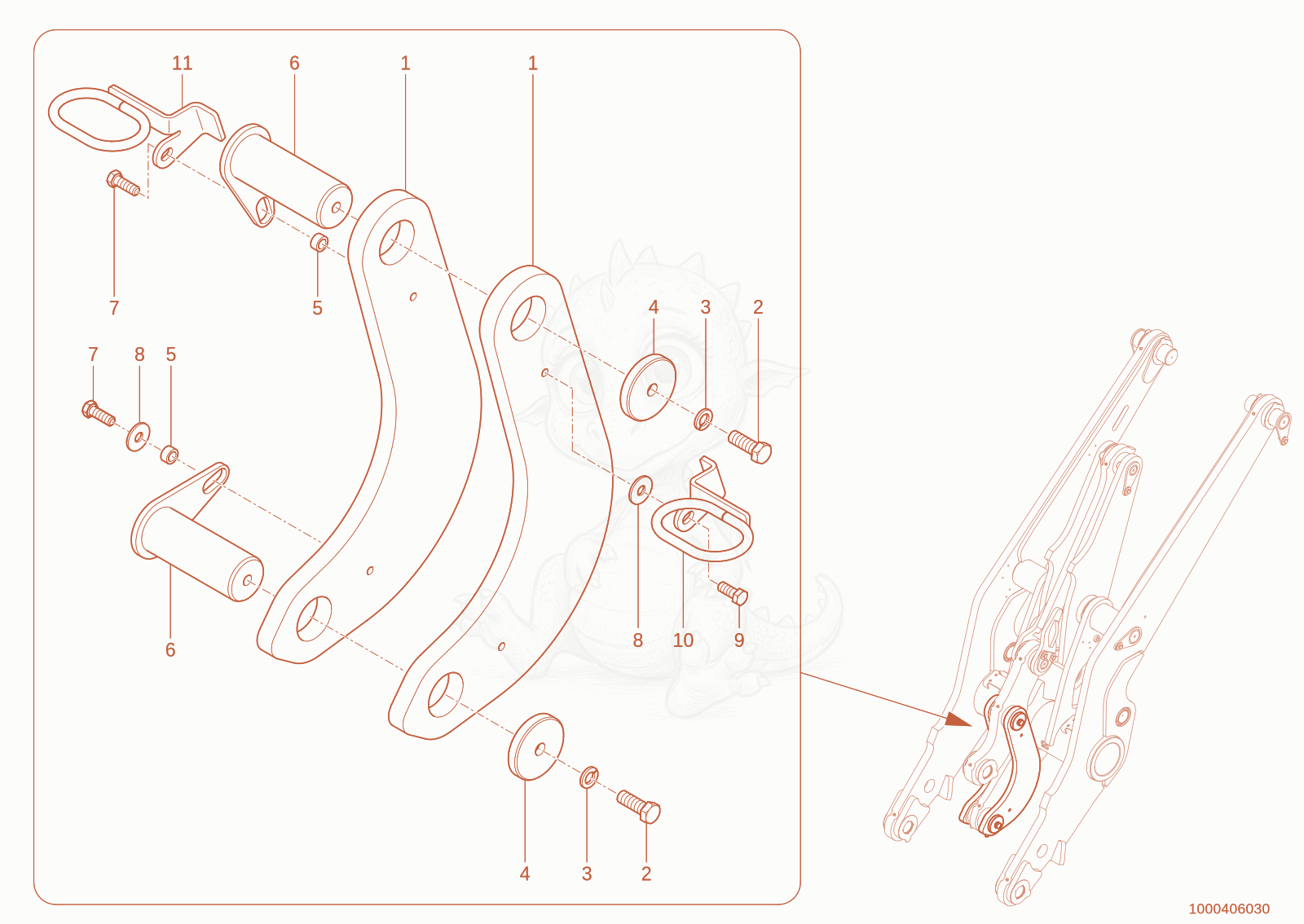

Exploded parts diagram of the LEVER of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000383746Price
    LEVER - 1000383746×2
  • 21000015404Not stocked
    hex screw×2
  • 31000082633Price
    spring washer - 1000082633×2
  • 41000196345Price
    PIN DISC - 1000196345×2
  • 51000091783Price
    WELD BUSHING - 1000091783×2
  • 61000356216Price
    pin - 1000356216×2
  • 71000047789Not stocked
    hex screw×2
  • 81000085613Price
    washer - 1000085613×2
  • 91000015347Not stocked
    hex screw×1
  • 101000410850Price
    Squeeze hose - 1000410850×1
  • 111000410840Price
    Squeeze hose - 1000410840×1
