WL110

WL110(WRL90-05) brake Diagram

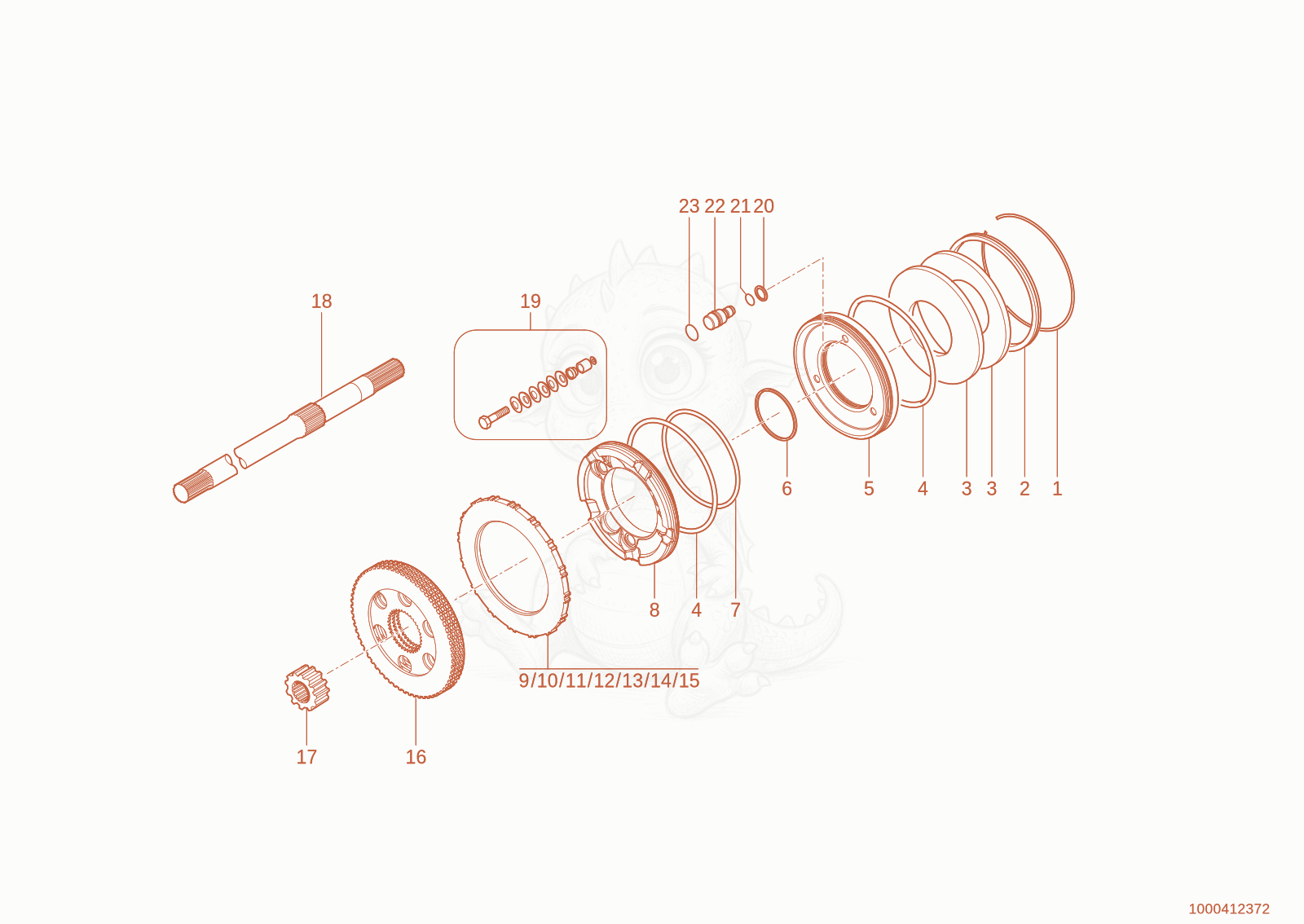

Exploded parts diagram of the brake of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000133095Price
    Ring - 1000133095×1
  • 21000412377Price
    Ring - 1000412377×1
  • 31000412378Price
    Washer - 1000412378×2
  • 41000133112Price
    O-ring - 1000133112×2
  • 51000133122Price
    Brakepiston 1000133122×1
  • 61000133114Price
    O-ring - 1000133114×1
  • 71000133115Price
    O-ring - 1000133115×1
  • 81000133123Price
    Brakepiston 1000133123×1
  • 91000412379Not stocked
    drive disk×1
  • 101000412380Not stocked
    drive disk×1
  • 111000412381Not stocked
    drive disk×1
  • 121000412382Not stocked
    drive disk×1
  • 131000412383Not stocked
    drive disk×1
  • 141000412384Not stocked
    drive disk×1
  • 151000412385Not stocked
    drive disk×1
  • 161000412386Not stocked
    friction plate×1
  • 171000133119Price
    Sleeve 1000133119×1
  • 181000412388Price
    Shaft - 1000412388×1
  • 191000133120Price
    Adjustment - 1000133120×1
  • 201000133118Price
    Washer - 1000133118×1
  • 211000133116Price
    O-ring - 1000133116×1
  • 221000412389Price
    Pin - 1000412389×1
  • 231000133117Price
    O-ring - 1000133117×1
