WL110

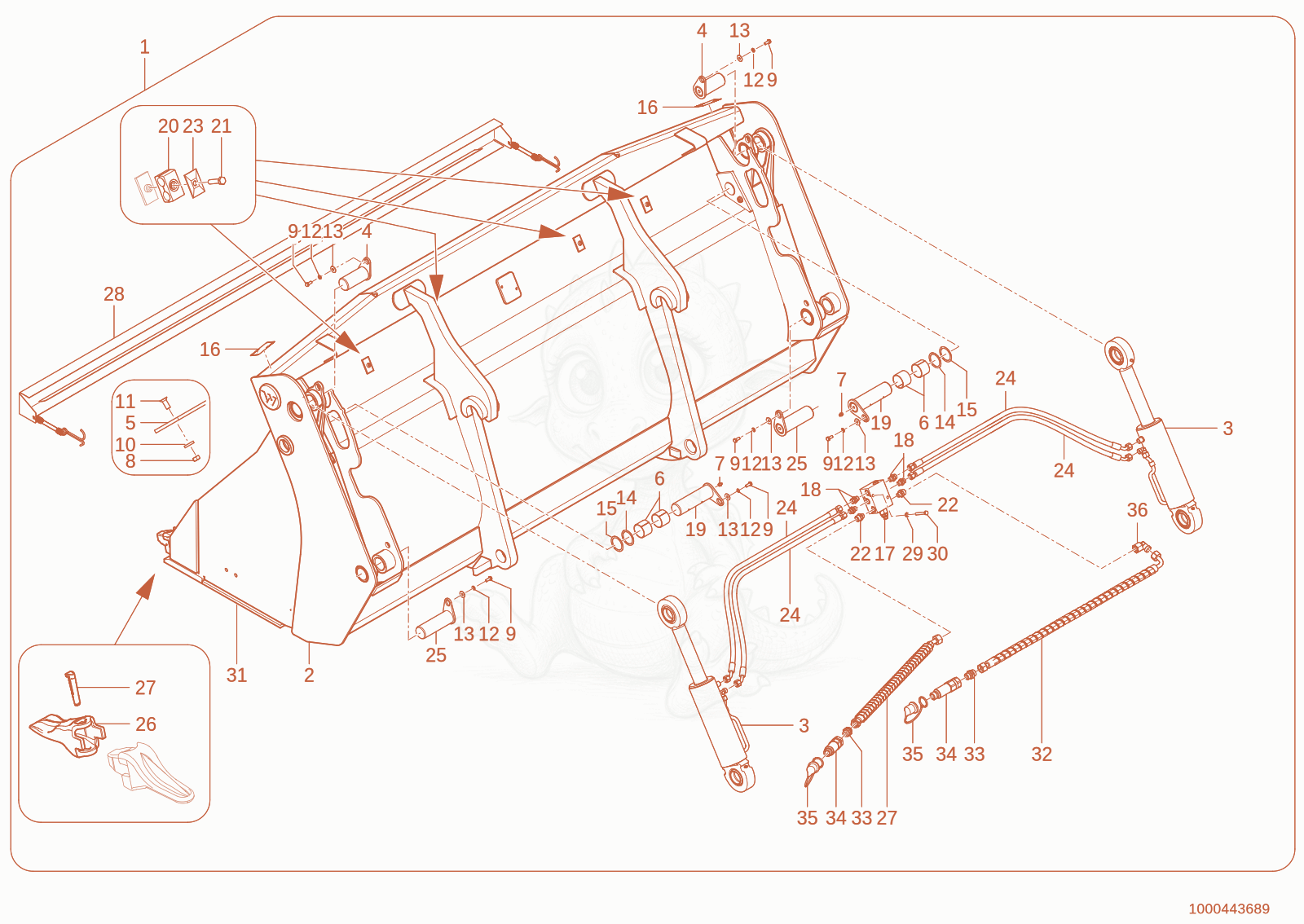

WL110(WRL90-05) multy purpose bucket Diagram
- 11000435952Not stocked4in1 Bucket 2500mm TPV/WM-1,7m³×1
- 21000431651Not stocked4/1 shovel (V) 2500 mm KRA - 2,0 m³×1
- 31000357071Not stockedtilt ram×2
- pin - 1000359399×2
- 51000359234Not stockedwear out rail×1
- slide bearing - 1000224690×4
- grease nipple - 1000050469×2
- HEXAGON NUT - 1000085583×10
- 91000015342Not stockedhex screw×6
- spring washer - 1000082633×10
- COUNTERSUNK SCREW - 1000222827×10
- 121000082617Not stockedspring washer×6
- 131000013027Not stockedwasher×6
- FITTING DISC - 1000092365×4
- fitting disc - 1000092322×4
- STICKER 'SECURITY' - 1000183258×2
- 171000266871Not stockedpressure reduct.valve×1
- GES12L/M16X1,5 GRAD.EINSCHR.ST - 1000226157×4
- pin - 1000359395×2
- CLAMPING JAWS - 1000222625×4
- 211000085316Not stockedhex screw×4
- GES15L/M16X1,5 GRAD.EINSCHR.ST - 1000226241×2
- 231000222622Not stockedcover plate×4
- 241000311644Not stockedHose×4
- pin - 1000359400×2
- Tooth - 1000334162×8
- Lock - 1000334164×8
- 281000396858Not stockedtooth protection×1
- 291000222819Not stockedu-washer×2
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
- 311000431654Not stocked4/1 shovel 2500mm 4in1 RZ TPV 1,7 m³×1
- SLHYDR 2SC 12 PN15 0 PN15 90 L850,0K - 1000400741×1
- 331000225980Not stockedscrew connection×2
- Coupling - 1000315585×2
- Protection cap - 1000109416×2
- 361000015512Not stockedscrew joint×1
- SLHYDR 2SC 12 PN15 0 PN15 30 L850,0K - 1000400740×1
