WL110

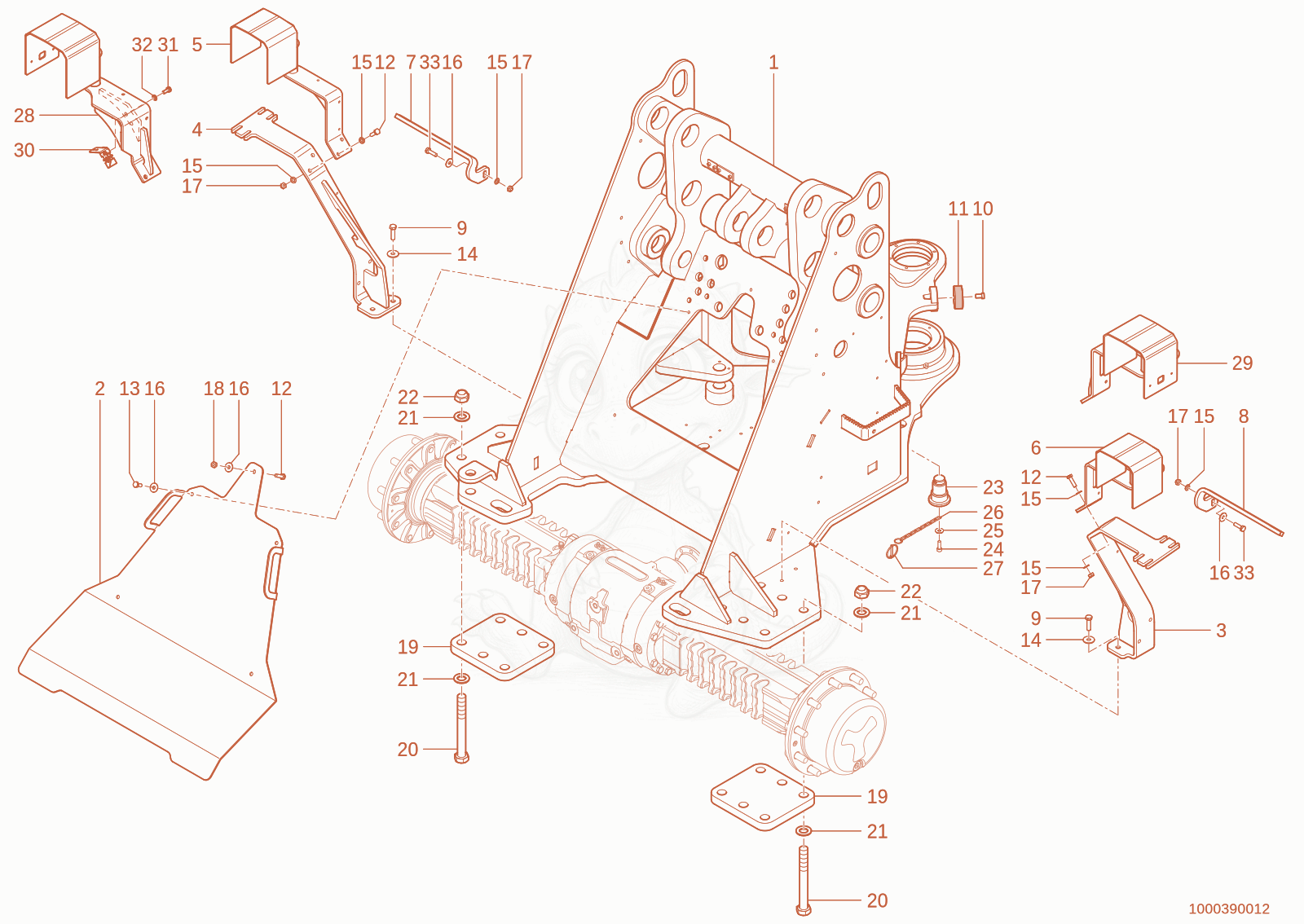

WL110(WRL90-05) front part frame Diagram

Exploded parts diagram of the front part frame of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000438707Not stocked
    front part frame×1
  • 21000358140Not stocked
    cover plate×1
  • 31000370651Price
    Bracket - 1000370651×1
  • 41000373721Price
    Bracket - 1000373721×1
  • 51000383009Not stocked
    bracket headlight×1
  • 61000383010Not stocked
    bracket headlight×1
  • 71000383183Price
    Bracket - 1000383183×1
  • 81000383185Price
    Bracket - 1000383185×1
  • 91000368666Not stocked
    hex screw×4
  • 101000022234Not stocked
    cheese head screw×2
  • 111000228577Price
    Silent block - 1000228577×2
  • 121000015346Not stocked
    hex screw×5
  • 131000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 141000085613Price
    washer - 1000085613×4
  • 151000092291Price
    WASHER - 1000092291×10
  • 161000092303Price
    Washer 10,5 St A2C - 1000092303×7
  • 171000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×10
  • 181000015407Not stocked
    hexagon nut×1
  • 191000385122Not stocked
    fixing plate×2
  • 201000224046Price
    HEX SCREW - 1000224046×12
  • 211000082637Price
    washer - 1000082637×24
  • 221000015421Not stocked
    hexagon nut×12
  • 231000376897Price
    PIN - 1000376897×1
  • 241000085456Price
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
  • 251000049283Not stocked
    bearing disc×1
  • 261000082730Price
    locking chain - 1000082730×1
  • 271000223426Price
    cotter pin - 1000223426×1
  • 281000401184Not stocked
    bracket×1
  • 291000401183Not stocked
    bracket×1
  • 301000402694Not stocked
    bracket×1
  • 311000013008Not stocked
    hex screw×2
  • 321000015431Not stocked
    washer×2
  • 331000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
