RD27-100, ROLLER

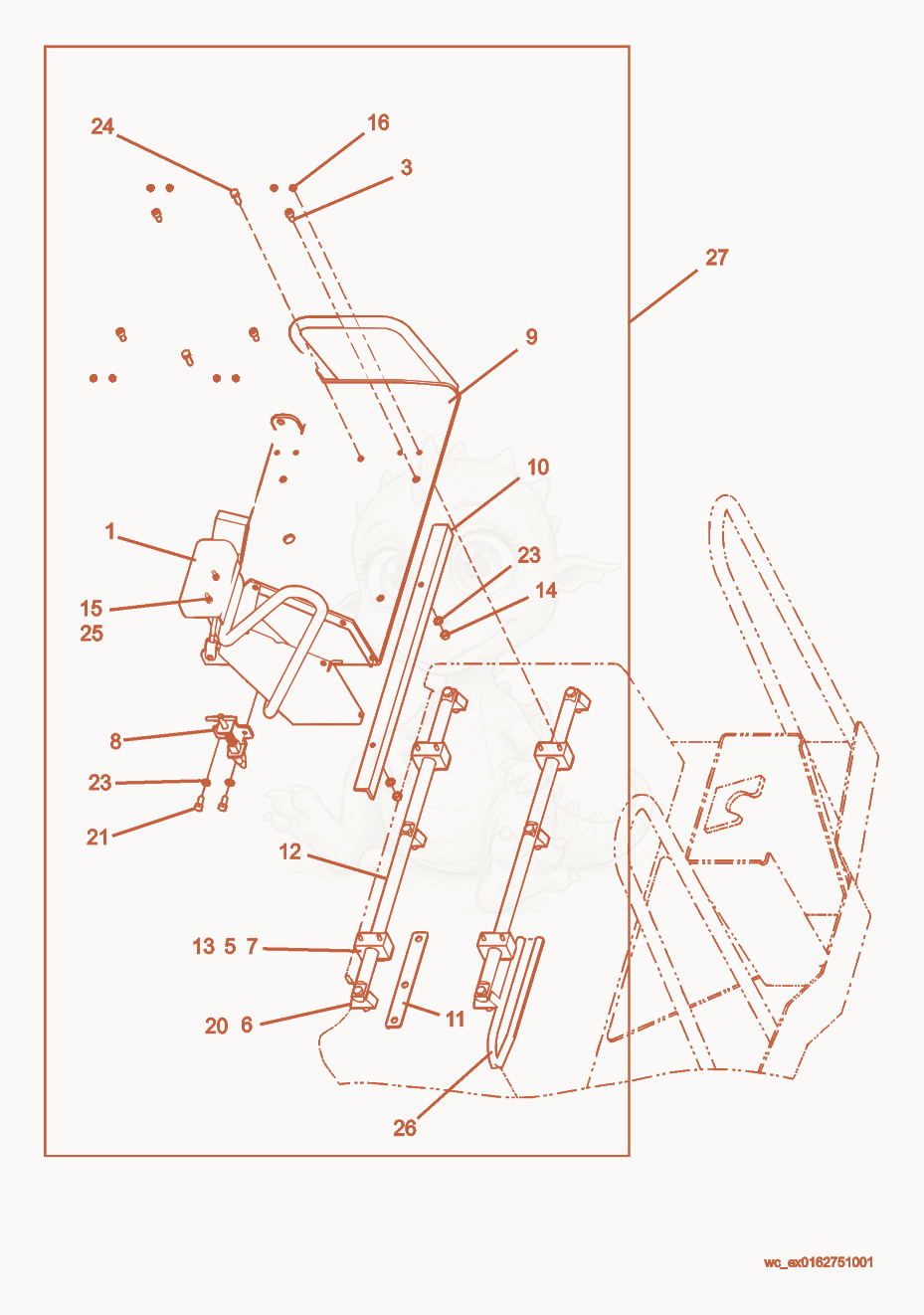

RD27-100 Sliding Seat Kit Diagram
- 15000161888Not stockedArmrest pad×1
- 35000161574Not stockedBolt×4
- plate - 5000162364×4
- SUPPORT-SHAFT - 5000162365×6
- BLOCK-BEARING - 5000162366×4
- LATCH-SPRING - 5000162367×1
- plate - 5000162368×1
- BRACKET - 5000162369×1
- BAR - 5000162370×1
- rod - 5000162371×2
- BOLT M6 X 1 - 5000162372×8
- NUT M8 X 1.25 - 5000161895×2
- BOLT M6 X 1 - 5000161896×2
- LOCKNUT M6 X 1 - 5000161930×8
- BOLT M10 X 1.5 - 5000162373×6
- BOLT M8 X 1.25 - 5000162015×2
- 235000162024Not stockedWasher×4
- BOLT M8 X 1.25 - 5000162029×2
- washer - 5000162058×2
- MOLDING-EDGER GUARD,1M - 5000161559×1
- 275000162752Not stockedSliding Seat Kit×1
