RD27-100, ROLLER

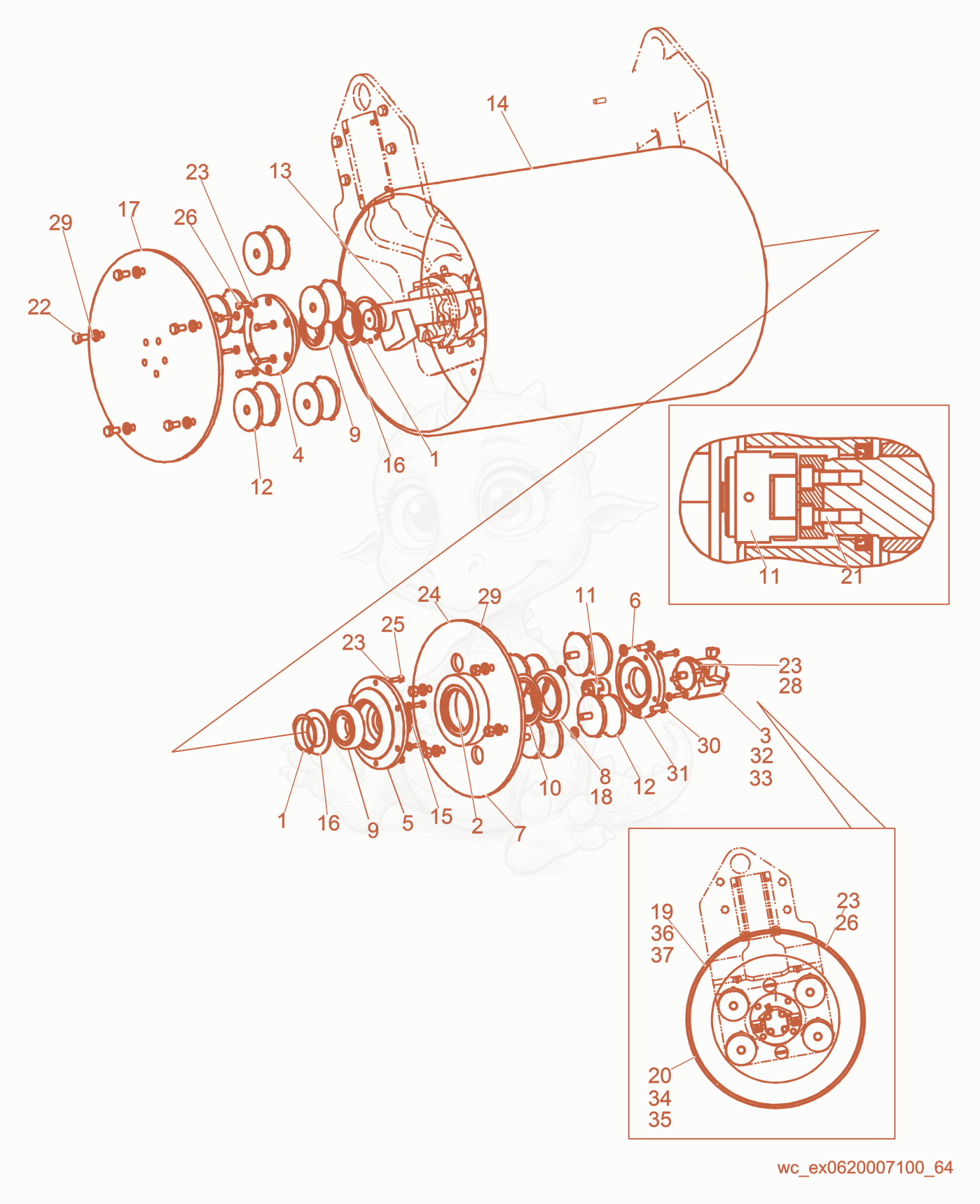

RD27-100 Drum Cpl. Diagram
- 15000161563Not stockedRetaining clip×2
- 25000161564Not stockedSeal×1
- MOTOR-EXCITER - 5000161638×1
- 45000161805Not stockedRoller drums cover×1
- COVER-ROLLER DRUMS - 5000161807×1
- cover - 5000161808×1
- 75000161970Not stockedSupport plate×1
- BEARING-BALL - 5000161841×1
- BEARING - 5000161842×2
- 105000161843Not stockedRing×1
- 115000177120Not stockedCoupling Kit×1
- 125000161845Not stockedShockmount×9
- SHAFT-EXCITER - 5000162064×1
- 145000162065Not stockedDrum cpl.×1
- 155000161866Not stockedSeal-shaft×1
- 165000161867Not stockedSealing ring×2
- plate - 5000161797×1
- retaining ring - 5000161596×1
- FITTING-ELBOW,90 DEG - 5000161607×1
- FITTING-ELBOW,90 DEG - 5000161608×11
- BOLT M8 X 1.25 - 5000161933×4
- 225000161979Not stockedBolt×5
- washer - 5000162006×18
- NUT M16 X 2 - 5000162007×4
- BOLT M10 X 1.5 - 5000162019×6
- 265000162020Not stockedBolt×10
- BOLT M16 X 2 - 5000162027×4
- BOLT M10 X 1.5 - 5000162056×2
- washer - 5000162059×13
- washer - 5000161977×4
- KEY-SQUARE - 5000162346×1
- 335000162348Not stockedSeal Kit×1
- O-ring - 5000161869×1
- O-ring - 5000161935×1
- O-ring - 5000161876×1
- O-ring - 5000161889×1
