RD27-100, ROLLER

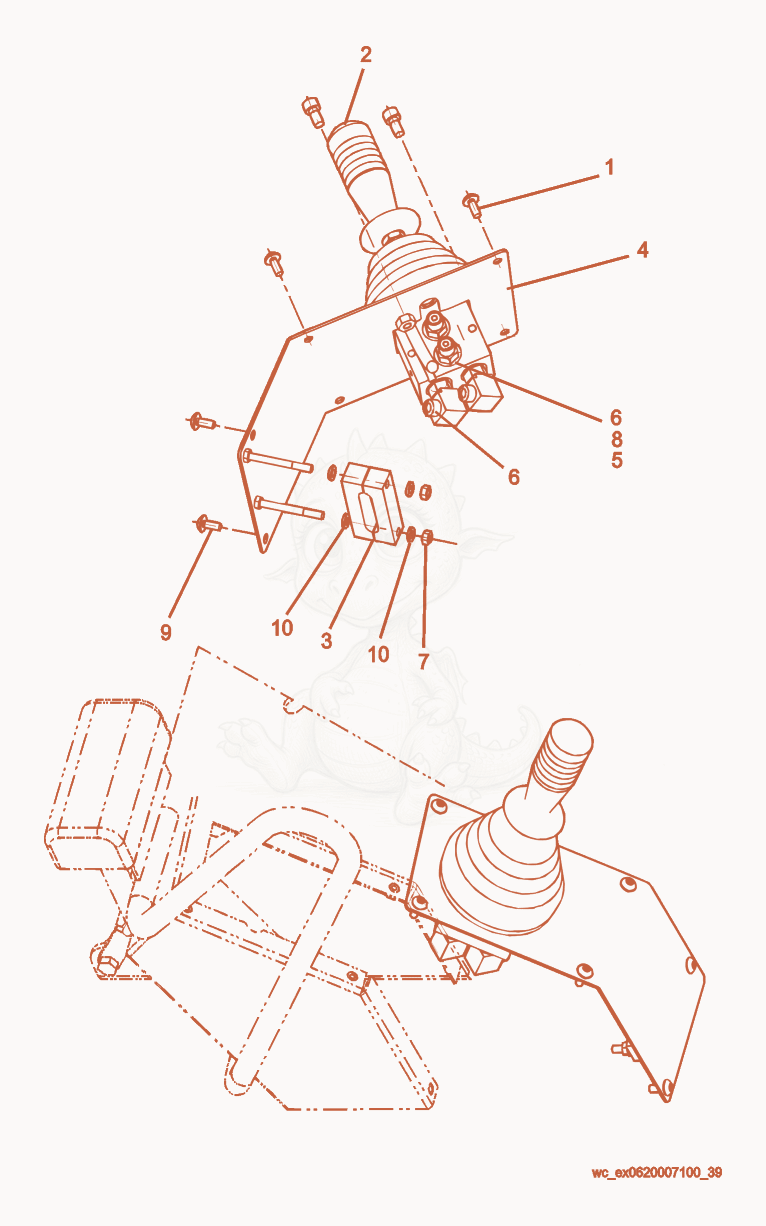

RD27-100 Hydraulic Valve Directional Control Diagram
- 15000161574Not stockedBolt×2
- 25000161779Not stockedDirectional control lever×1
- 35000161793Not stockedClamp×1
- COVER ASSEMBLY - 5000161800×1
- O-ring - 5000161875×2
- O-ring - 5000161889×4
- NUT M6 X 1 - 5000161894×2
- FITTING - 5000161943×2
- 95000162053Not stockedScrew×6
- washer - 5000162058×4
