RD27-100, ROLLER

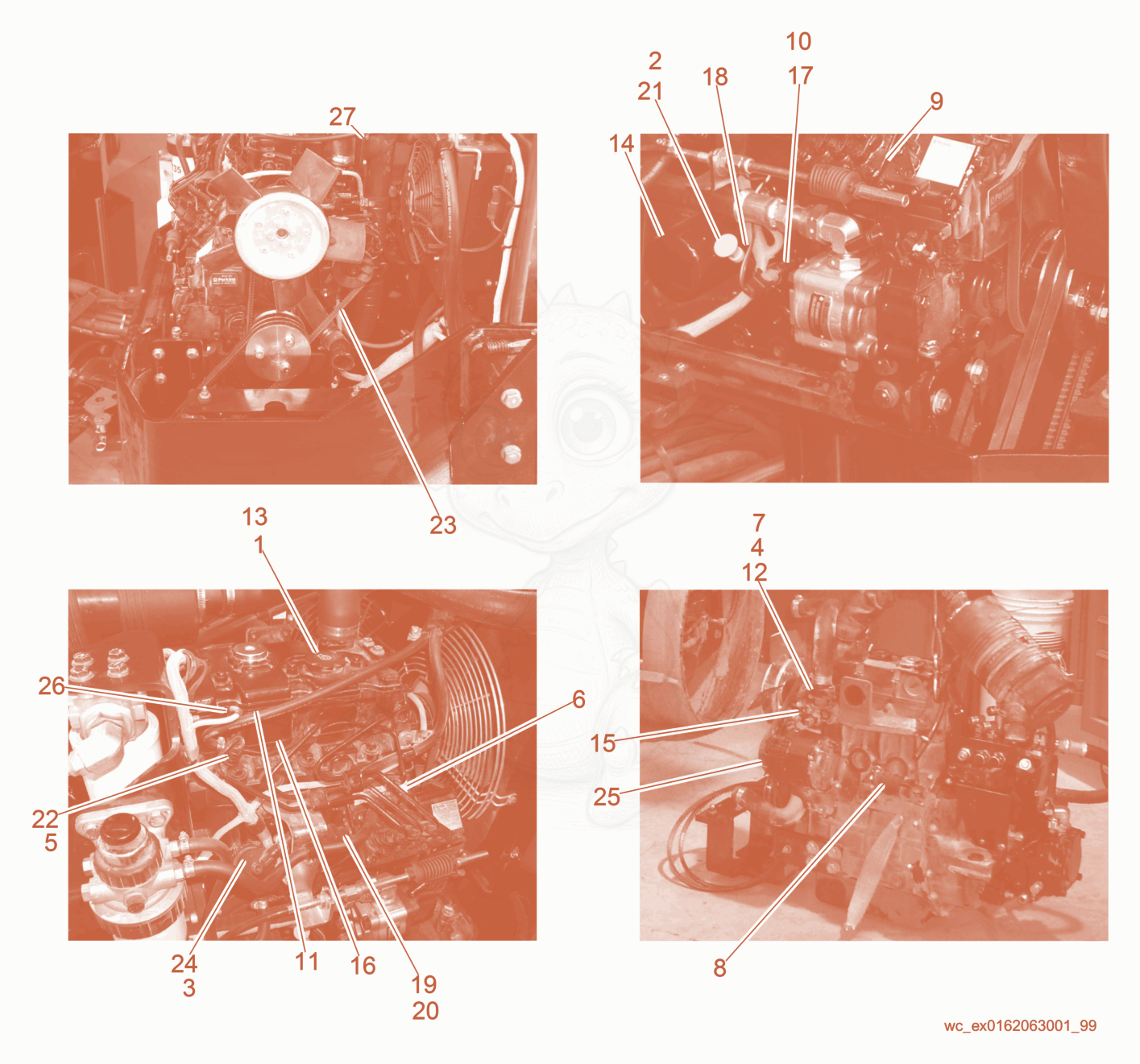

RD27-100 Engine - Perkins Diagram

Exploded parts diagram of the Engine - Perkins of a Wacker Neuson RD27-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000161479Not stocked
    Oil tank cap×1
  • 25000161533Price
    DIPSTICK - 5000161533×1
  • 35000161508Price
    O-ring - 5000161508×1
  • 45000161421Price
    PUMP-WATER - 5000161421×1
  • 55000161395Not stocked
    Gasket×3
  • 65000161393Price
    GASKET - 5000161393×2
  • 75000161429Price
    GASKET - 5000161429×1
  • 85000161444Price
    MOTOR-STARTER - 5000161444×1
  • 95000161442Price
    GASKET-COVER,TIMING - 5000161442×1
  • 105000161446Price
    SWITCH-PRESSURE - 5000161446×1
  • 115000161182Price
    GASKET-VALVE COVER - 5000161182×1
  • 125000161423Price
    VALVE-THERMOSTAT - 5000161423×1
  • 135000161145Price
    SEAL-OIL - 5000161145×1
  • 145000161415Price
    FILTER-OIL, same as 1000231366 - 5000161415×1
  • 155000161531Price
    SWITCH-PRESSURE - 5000161531×1
  • 165000161377Price
    GASKET-ROCKER BOX - 5000161377×1
  • 175000161419Price
    washer - 5000161419×2
  • 185000161143Price
    O-ring - 5000161143×1
  • 195000161445Price
    solenoid - 5000161445×1
  • 205000161115Price
    washer - 5000161115×1
  • 215000161174Price
    TUBE-DIPSTICK - 5000161174×1
  • 225000161394Price
    Injector - 5000161394×1
  • 235000161163Price
    BELT-V - 5000161163×1
  • 245000161386Price
    PUMP-FUEL - 5000161386×1
  • 255000161443Price
    ALTERNATOR-COMPLETE - 5000161443×1
  • 265000161447Not stocked
    Glow plug×3
  • 275000161530Not stocked
    Exhaust gasket×1
  • 285000161534Price
    valve - 5000161534×1
