RD27-100, ROLLER

RD27-100 Wiring Harness/Engine Diagram

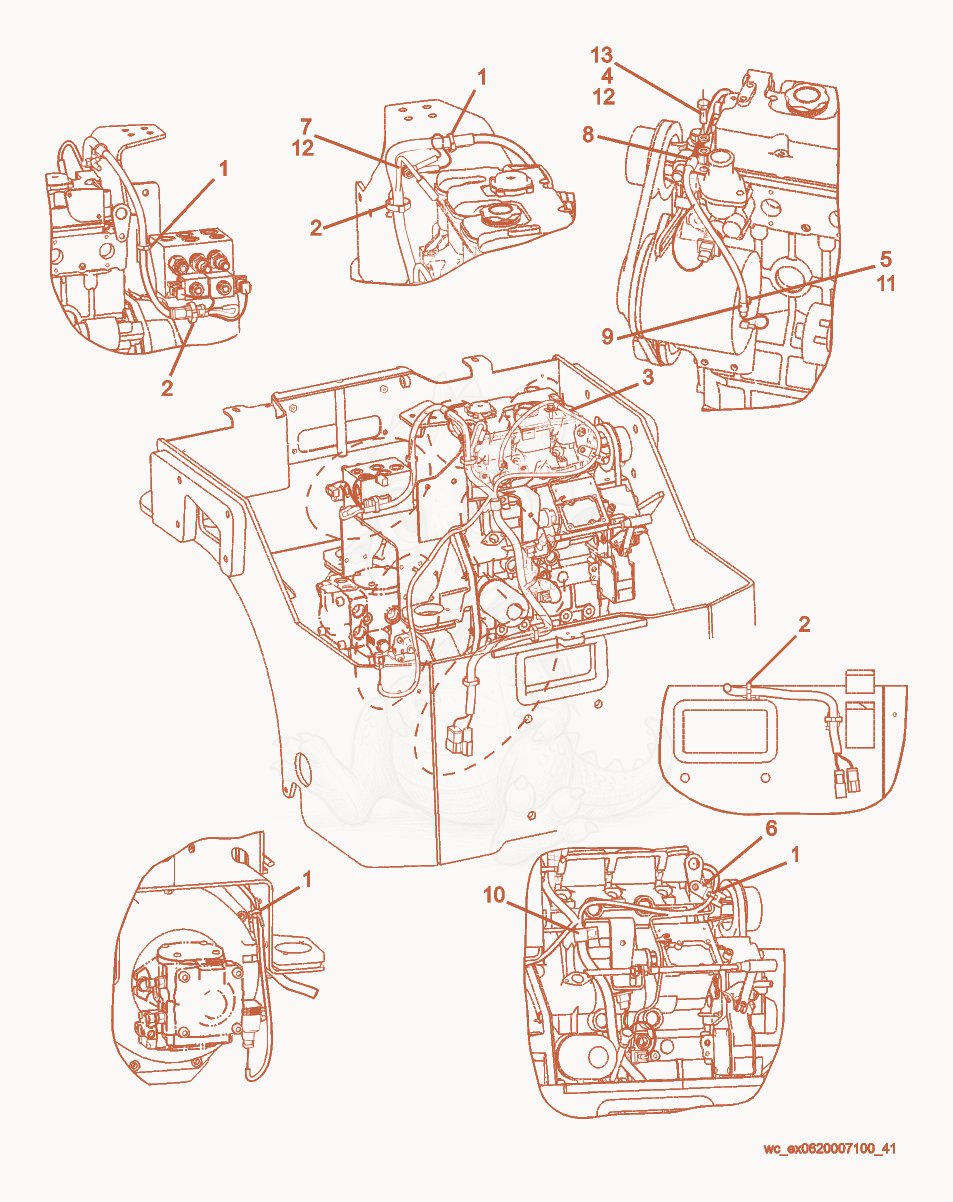

Exploded parts diagram of the Wiring Harness/Engine of a Wacker Neuson RD27-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000161879Not stocked
    Strap×4
  • 25000161969Price
    STRAP-MOUNTING - 5000161969×4
  • 35000161796Price
    WIRING HARNESS-ENGINE - 5000161796×1
  • 45000161870Price
    LOCKWASHER - 5000161870×1
  • 55000161880Price
    LOCKNUT M5 X .08 - 5000161880×1
  • 65000161892Price
    CLIP-WIRING HARNESS - 5000161892×1
  • 75000161895Price
    NUT M8 X 1.25 - 5000161895×1
  • 85000161913Price
    CLIP-CABLE - 5000161913×1
  • 95000161994Price
    CLIP-CABLE - 5000161994×1
  • 105000161995Price
    CLIP-CABLE - 5000161995×1
  • 115000162001Price
    Washer - 5000162001×1
  • 125000162024Not stocked
    Washer×3
  • 135000162029Price
    BOLT M8 X 1.25 - 5000162029×1
