EZ17

EZ17 DIPPER ARM CYLINDER Diagram

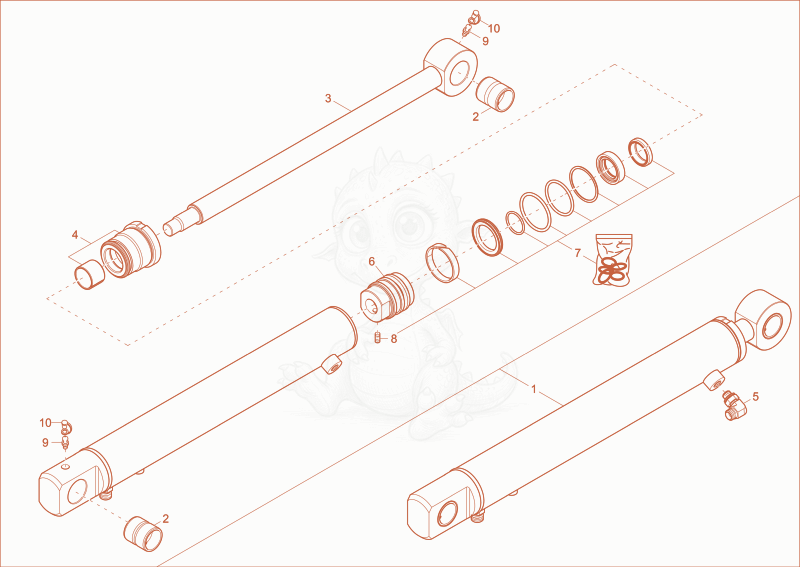

Exploded parts diagram of the DIPPER ARM CYLINDER of a Wacker Neuson EZ17, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000371419Not stocked
    dipper arm cylinder×1
  • 21000165322Price
    STEEL BUSHING - 1000165322×2
  • 31000160910Price
    Pistonrod 1000160910×1
  • 41000364348Not stocked
    guide bushing×1
  • 51000060905Price
    WEE10LROMDA3C - 1000060905×1
  • 61000159628Price
    PISTON - 1000159628×1
  • 71000364349Not stocked
    cylinder seal kit×1
  • 81000128055Price
    thread pin - 1000128055×1
  • 91000015475Not stocked
    grease nipple×2
  • 101000015480Not stocked
    cap grease nipple×2
