EZ17

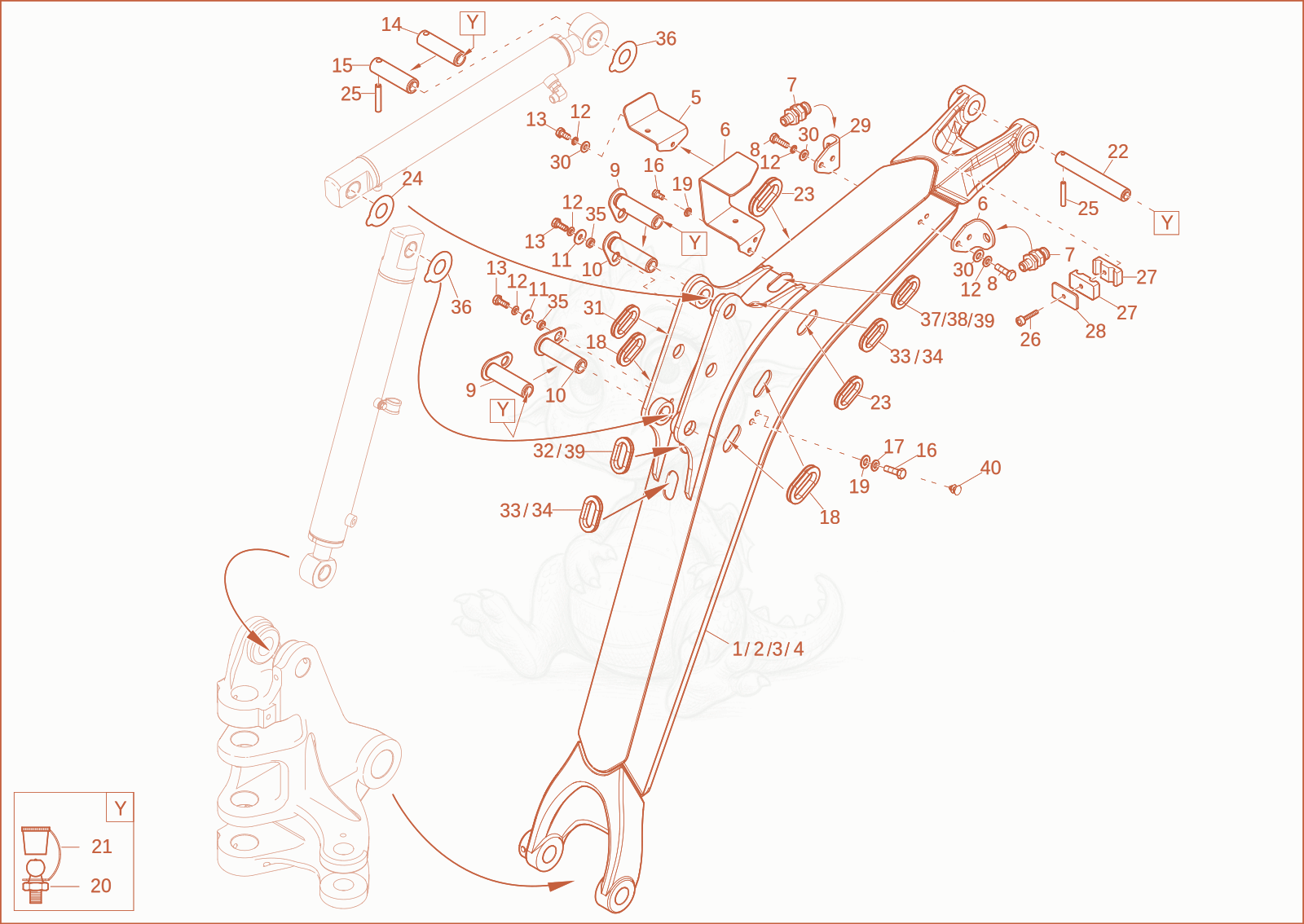

EZ17 lift arm Diagram
- 11000360377Not stockedlift arm×1
- 21000360378Not stockedlift arm×1
- 31000456854Not stockedlift arm×1
- 41000456853Not stockedlift arm×1
- protection plate - 1000248281×1
- 61000447921Not stockedprotection plate×1
- 71000021041Not stockedscrew joint×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- PIN - 1000267692×2
- 101000372615Not stockedpin×2
- Washer 10,5 St A2C - 1000092303×2
- 121000015438Not stockedlock washer×7
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
- PIN - 1000267689×1
- 151000371417Not stockedpin×1
- 161000013008Not stockedhex screw×6
- 171000015437Not stockedlock washer×4
- rubber sleeve oval 23x55/27x59/74x42-5 - 1000272938×4
- 191000015431Not stockedwasher×6
- 201000015475Not stockedgrease nipple×4
- 211000015480Not stockedcap grease nipple×4
- pin DM=30x205 - 1000267690×1
- edge protection - 1000282504×2
- shim 1,0mm - 1000153541×1
- 251000021313Not stockedcotter pin×2
- 261000048172Not stockedcheese head screw×1
- clamp 18/2 - 1000083300×2
- 281000015629Not stockedcover plate×1
- bracket coupling - 1000282505×2
- washer 10,5 A2C DIN125 - 1000015432×5
- edge protection - 1000154222×3
- 321000327876Not stockededge protection×1
- edge protection - 1000154222×2
- 341000327876Not stockededge protection×2
- washer 18/12x5 - 1000151025×2
- shim 0,5mm - 1000153542×2
- edge protection - 1000154222×1
- 381000327876Not stockededge protection×1
- edge protection - 1000154222×2
- plug M8 - 1000288011×4
