EZ17

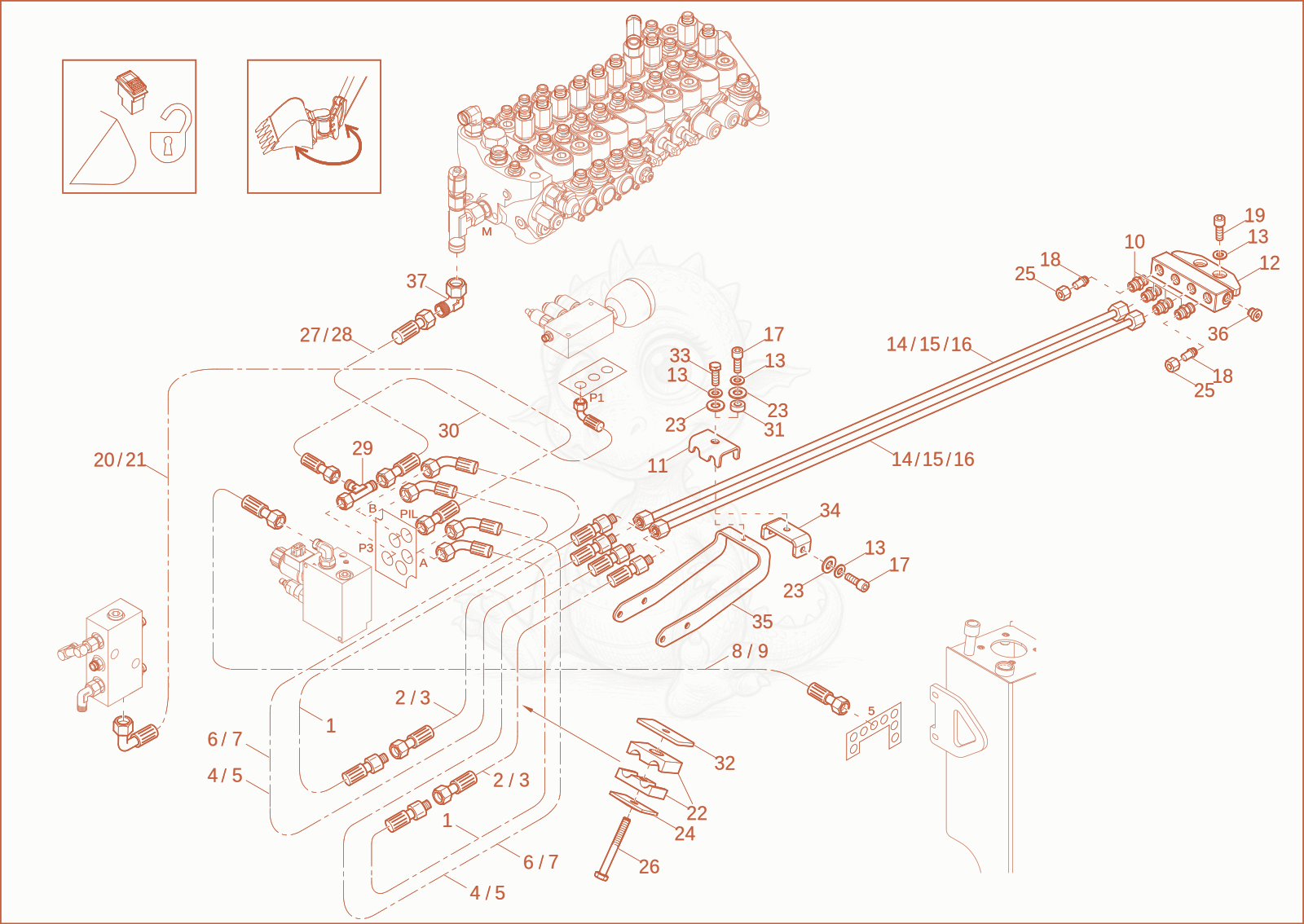

EZ17 Pilot circuit Powertilt (Option) Diagram
- SLHYDR 20405,0PN8 45 PD8 0 L3000 S0 - 1000290989×2
- SLHYDR 20405,0PN8 0 PD8 0 L300,0S0 - 1000290990×2
- SLHYDR 20405,0PN8 0 PD8 0 L400,0S0 - 1000290991×2
- 41000371167Not stockedHose×2
- 51000520909Not stockedHose×2
- 61000371166Not stockedHose×2
- 71000520911Not stockedHose×2
- SLHYDR 20405,0PN8 0 PN8 0 L800,0 0 - 1000290988×1
- 91000520912Not stockedHose×1
- 101000015488Not stockedscrew joint×4
- pipe clamp - 1000261367×1
- 121000439616Not stockeddistributor block×1
- 131000015437Not stockedlock washer×5
- pipe line - 1000258923×2
- pipe line - 1000258924×2
- 161000366324Not stockedpipe line×2
- 171000013014Not stockedcheese head screw×3
- VKA08A3C - 1000083043×2
- socket head screw M8x12-8.8 A2C DIN912 - 1000085493×2
- SLHYDR 20405,0PN8 90 PN8 0 L300,0 0 - 1000290986×1
- 211000521744Not stockedHose×1
- clamp Body - 1000083285×1
- 231000015431Not stockedwasher×3
- 241000022379Not stockedcover plate×1
- 251000015481Not stockedunion nut×2
- hex screw - 1000085320×1
- SLHYDR 20405,0PN8 0 PN8 0 L250,0 0 - 1000290987×1
- 281000521744Not stockedHose×1
- 291000015515Not stockedscrew joint×1
- 301000016714Not stockedHose×1
- SLEEVE - 1000255464×1
- 321000359603Not stockedintermediate plate×1
- 331000015343Not stockedhex screw×1
- HOLDER - 1000258925×1
- holder - 1000366325×1
- VSTI1/8EDA3C - 1000082827×2
- EW08LOMD - 1000000542×1
