EZ17

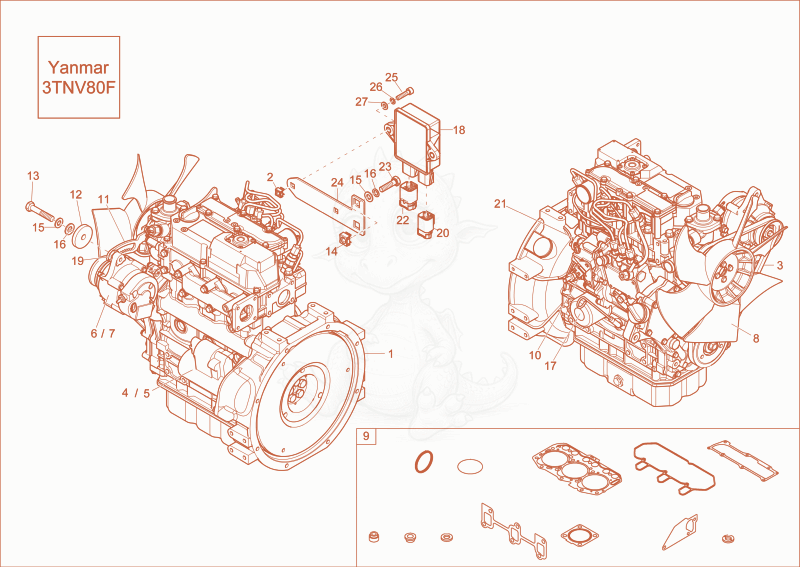

EZ17 diesel engine Diagram
- 11000269854Not stockeddiesel engine×1
- cage nut M6 2,6-3,5 - 1000094952×2
- V-belt - 1000148347×1
- Starter 1000148348×1
- 51000325549Not stockedstarter×1
- Generator 1000098694×1
- 71000325545Not stockedgenerator×1
- fan - 1000149727×1
- seal kit - 1000297988×1
- 101000003891Not stockedoil pressure switch×1
- console - 1000266443×1
- washer 37x8,5x6 - 1000266447×1
- 131000015380Not stockedhex screw×1
- 141000015425Not stockedcage nut×1
- 151000015437Not stockedlock washer×2
- 161000015431Not stockedwasher×2
- engine oilfilter - 1000003052×1
- PRESSURE SENSOR - 1000276731×1
- gear - 1000266445×1
- bushing housing - 1000260159×1
- shut off solenoid - 1000137007×1
- bushing housing - 1000288405×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
- BRACKET - 1000289262×1
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
- 261000015436Not stockedlock washer×2
- 271000015430Not stockedu-washer×2
