EZ17

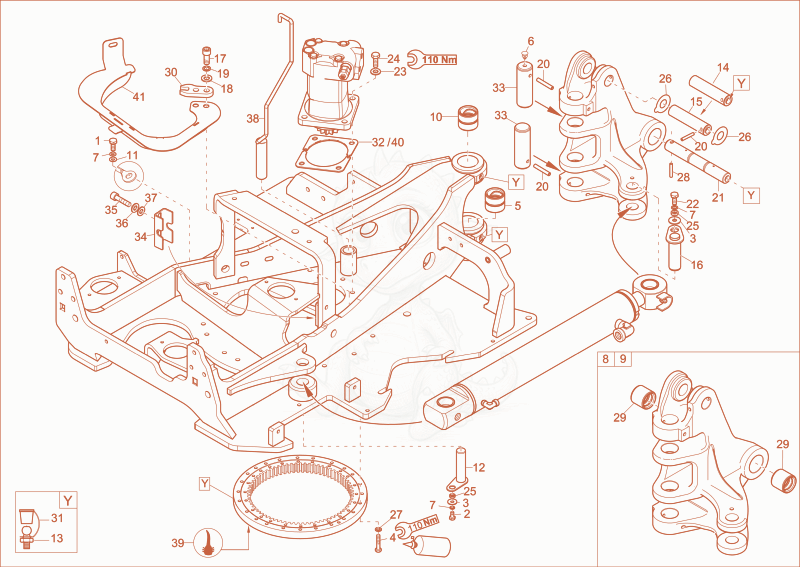

EZ17 chassis Diagram
- 11000013009Not stockedhex screw×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- Washer 10,5 St A2C - 1000092303×2
- 6-piont screw M12x50 - 1000085438×17
- 51000019750Not stockedsteel bushing×1
- plug M8 - 1000288011×1
- 71000015438Not stockedlock washer×3
- 81000315847Not stockedswivel console×1
- 91000315848Not stockedswivel console×1
- 101000152780Not stockedsteel bushing×1
- washer 10,5 A2C DIN125 - 1000015432×1
- pin DM=30x130 - 1000283071×1
- 131000015475Not stockedgrease nipple×5
- PIN - 1000267694×1
- 151000372616Not stockedpin×1
- pin DM=30x100 - 1000267693×1
- allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×2
- 181000049219Not stockedwasher×2
- lock washer - 1000082609×2
- cotter pin 8x80 - 1000082715×3
- 211000307268Not stockedpin×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
- 231000015450Not stockednorthlock disc×4
- 241000015381Not stockedhex screw×4
- washer 18/12x5 - 1000151025×2
- shim 1,0mm - 1000153541×2
- 271000426231Not stockedlock washer×17
- 281000021313Not stockedcotter pin×1
- steel bushing 45/36x40 - 1000152791×2
- twist lock - 1000283075×1
- 311000015480Not stockedcap grease nipple×5
- shim - 1000173360×1
- pin DM=40x120 - 1000267695×2
- pipe clamp - 1000283709×1
- allen screw M12x50 10.9 - 1000085512×2
- lock washer - 1000082609×2
- 371000049219Not stockedwasher×2
- twist lock pin - 1000283048×1
- seal - 1000336176×1.5
- shim - 1000368412×1
- cover - 1000357012×1
