ET90

ET90 AIR-CONDITIONING PLANT (OPTION) Diagram

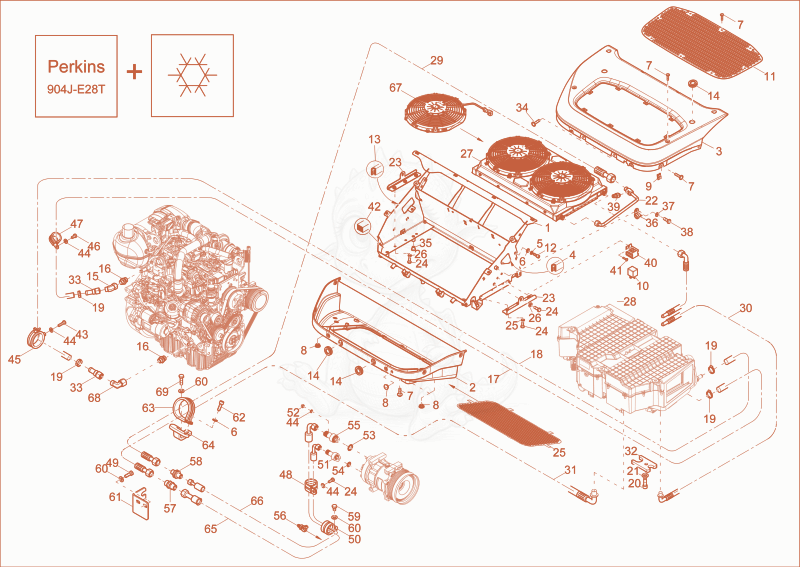

Exploded parts diagram of the AIR-CONDITIONING PLANT (OPTION) of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000384793Price
    console - 1000384793×1
  • 21000384794Price
    COVER - 1000384794×1
  • 31000447395Price
    COVER - 1000447395×1
  • 41000181084Price
    EDGE PROTECTION - 1000181084×0.27
  • 51000015438Not stocked
    lock washer×6
  • 61000015432Price
    washer 10,5 A2C DIN125 - 1000015432×7
  • 71000165459Price
    screw M6x12 ISO7380-2 - 1000165459×22
  • 81000075523Price
    blind plug - 1000075523×4
  • 91000316099Not stocked
    nut×12
  • 101000353650Not stocked
    relay×2
  • 111000379667Price
    screen - 1000379667×1
  • 121000085502Price
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×6
  • 131000181084Price
    EDGE PROTECTION - 1000181084×0.27
  • 141000155184Price
    RUBBER SLEEVE - 1000155184×4
  • 151000188085Price
    EV12LOMDA3C - 1000188085×1
  • 161000028168Not stocked
    screw joint×2
  • 171000261871Price
    heater hose ID15x3,5 - 1000261871×3
  • 181000261871Price
    heater hose ID15x3,5 - 1000261871×3.2
  • 191000267810Price
    hose clamp - 1000267810×4
  • 201000085457Price
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
  • 211000015436Not stocked
    lock washer×1
  • 221000380133Price
    pipe line - 1000380133×1
  • 231000377501Not stocked
    clamp plate×2
  • 241000013008Not stocked
    hex screw×8
  • 251000384796Price
    screen - 1000384796×1
  • 261000015431Not stocked
    washer×7
  • 271000390864Price
    Condenser - 1000390864×1
  • 281000380072Not stocked
    hose aircondition system×1
  • 291000380073Not stocked
    hose aircondition system×1
  • 301000338162Not stocked
    hose aircondition system×1
  • 311000391060Not stocked
    hose aircondition system×1
  • 321000338212Price
    BRACKET - 1000338212×1
  • 331000267951Price
    hose sleeve - 1000267951×2
  • 341000312180Not stocked
    flat head screw×2
  • 351000327361Not stocked
    plug×2
  • 361000151200Price
    pipe clamp RSGU 1.13/20 - 1000151200×1
  • 371000015430Not stocked
    u-washer×1
  • 381000085382Price
    HEX SCREW - 1000085382×1
  • 391000375024Price
    VALVE - 1000375024×1
  • 401000101071Price
    Plug housing - 1000101071×2
  • 411000335809Price
    SCREW - 1000335809×2
  • 421000098196Price
    seal strap foam 10x15 - 1000098196×1.9
  • 431000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 441000015448Not stocked
    washer×5
  • 451000062410Not stocked
    pipe clamp×1
  • 461000019136Not stocked
    hex screw×1
  • 471000274288Price
    pipe clamp RSGU 1.45/20-W1 - 1000274288×1
  • 481000304270Price
    clamp - 1000304270×1
  • 491000015364Not stocked
    hex screw×2
  • 501000062543Not stocked
    pipe clamp×1
  • 511000417224Price
    Adapter - 1000417224×1
  • 521000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 531000418571Not stocked
    screw joint×1
  • 541000419995Price
    seal - 1000419995×1
  • 551000417222Price
    Adapter - 1000417222×1
  • 561000322839Not stocked
    fixing bracket×2
  • 571000418895Not stocked
    extension×1
  • 581000420281Not stocked
    extension×1
  • 591000013009Not stocked
    hex screw×1
  • 601000094974Price
    washer M10-DIN134 - 1000094974×5
  • 611000438336Price
    BRACKET - 1000438336×1
  • 621000015376Not stocked
    cheese head screw×1
  • 631000408158Not stocked
    pipe clamp×1
  • 641000439905Price
    bracket - 1000439905×1
  • 651000439906Not stocked
    hose aircondition system×1
  • 661000439907Price
    hose aircondition system - 1000439907×1
  • 671000411736Price
    cooling fan - 1000411736×2
  • 681000000573Not stocked
    screw joint×1
  • 691000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
