ET90

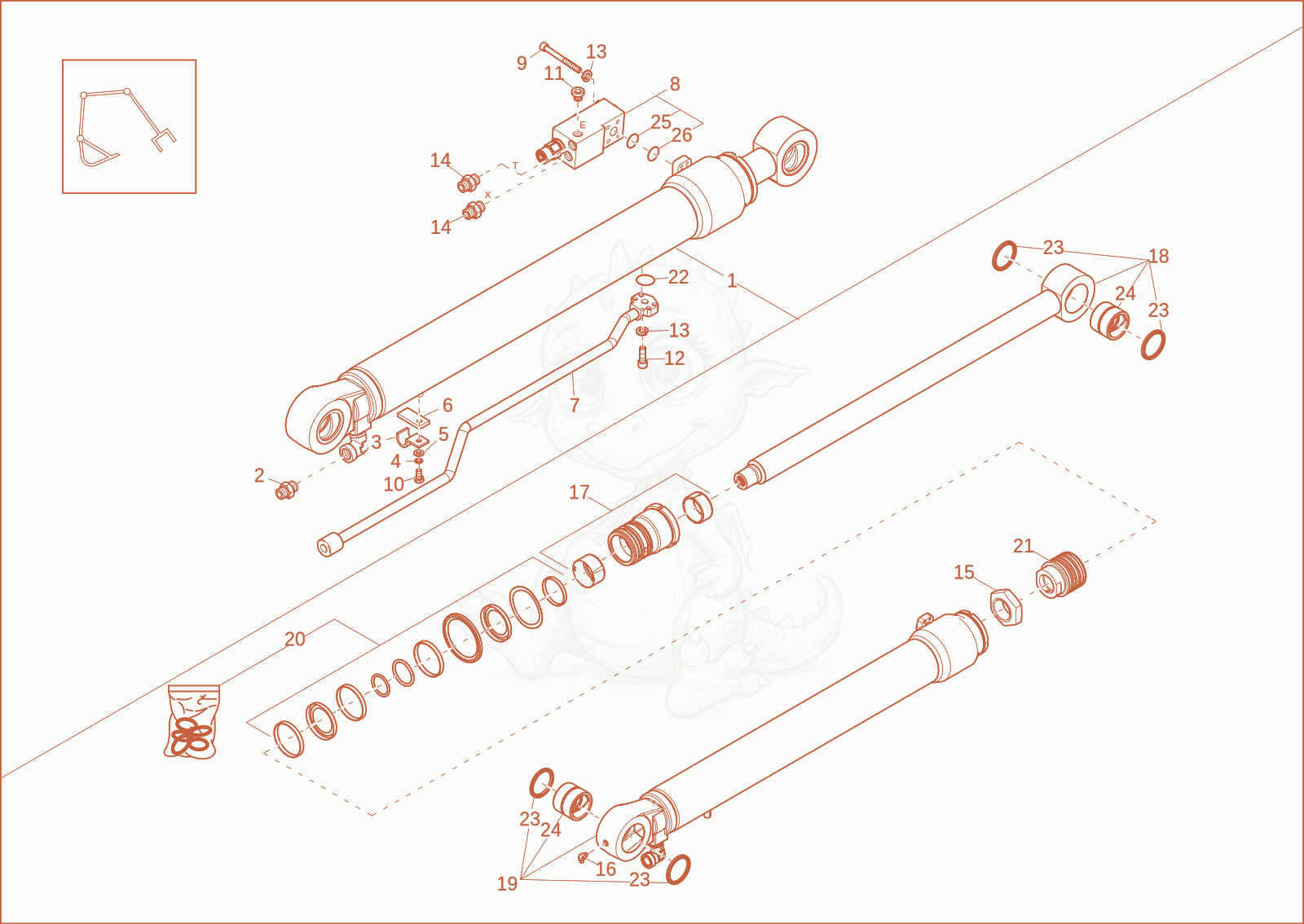

ET90 DIPPER ARM CYLINDER (OPTION) Diagram
- 11000365264Not stockeddipper arm cylinder×1
- GE25SR3/4" EDOMDA3C - 1000085118×1
- pipe clamp - 1000142445×1
- 41000015438Not stockedlock washer×1
- washer 10,5 A2C DIN125 - 1000015432×1
- plate - 1000144813×1
- cylinder pipes assy. - 1000142442×1
- 81000306094Not stockedhose burst valve×1
- cheese head screw - 1000085467×4
- GE25SR3/4" EDOMDA3C - 1000085118×1
- 111000022438Not stockedscrew joint×1
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
- spring washer - 1000082624×8
- 141000015490Not stockedscrew joint×2
- set nut - 1000286245×1
- WE06LLR1/8A3CX - 1000082861×1
- 171000372916Not stockedguide bushing×1
- 181000339187Not stockedpiston rod×1
- 191000339188Not stockedcylinder housing×1
- 201000372950Not stockedcylinder seal kit×1
- Piston 1000286263×1
- O-RING - 1000015678×2
- pin gasket - 1000286250×2
- steel bushing - 1000286261×4
- O-RING - 1000090469×1
- support ring - 1000406200×1
