ET90

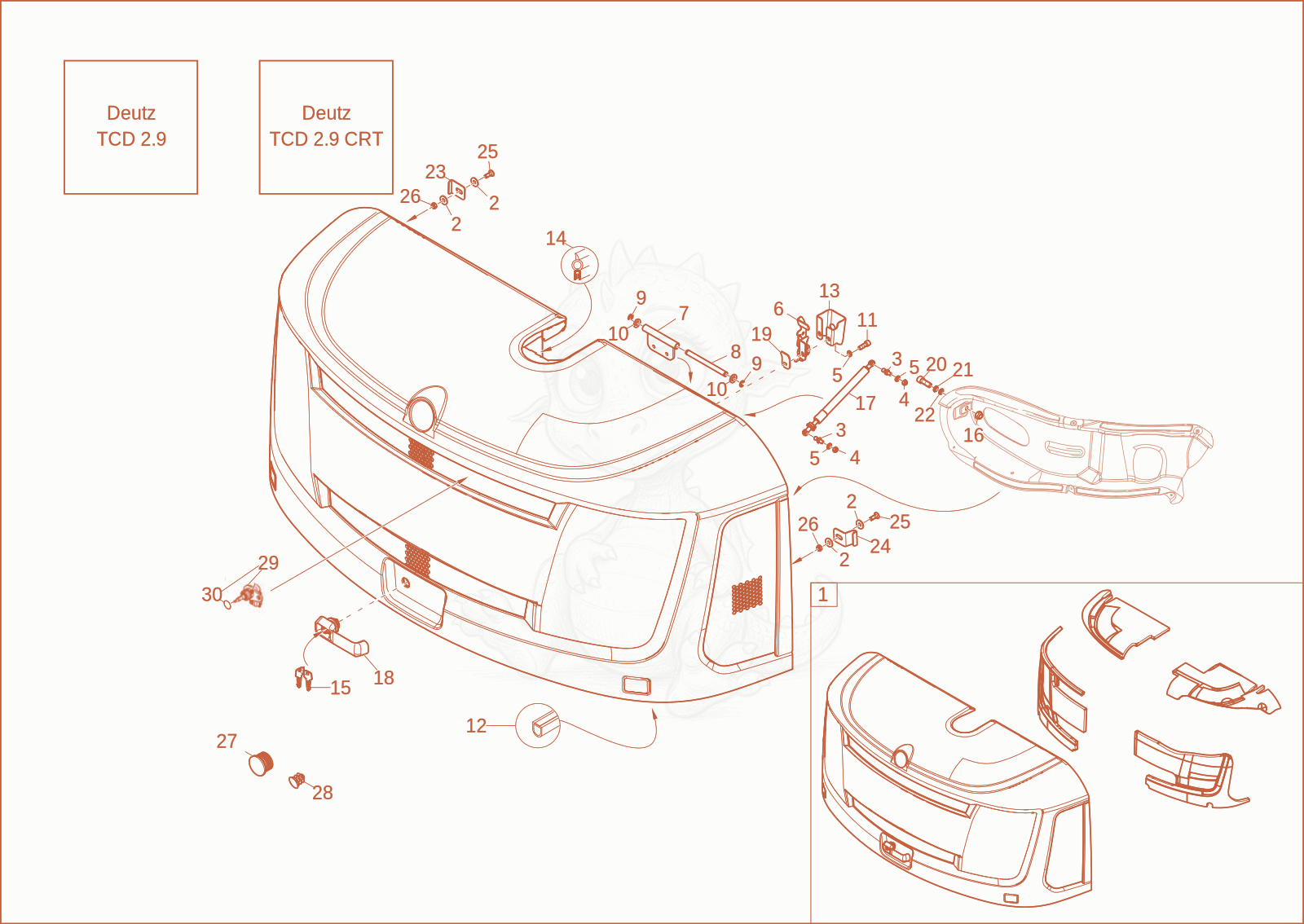

ET90 engine hood Diagram
- BONNET - 1000441186×1
- washer A 6,4 St A2C DIN9021 - 1000095343×4
- 31000238291Not stockedball plug×2
- DIN985-M8-8-A2C - 1000015416×2
- 51000015431Not stockedwasher×3
- LOCK - 1000152576×1
- HINGE - 1000307270×2
- 81000307282Not stockedhinge pin×2
- 91000307281Not stockedlock washer×4
- 101000049219Not stockedwasher×4
- 111000019593Not stockedcheese head screw×2
- 121000328098Not stockedseal×2.1
- 131000332595Not stockedcover lock×1
- rubber profile 1,5-3mm - 1000098164×0.37
- EZ17 Key without cap - 1000184819×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
- 171000506894Not stockedgas strut×1
- handle - 1000012882×1
- 191000326357Not stockedfeeler×1
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
- 211000015436Not stockedlock washer×1
- 221000015430Not stockedu-washer×1
- angle - 1000372309×1
- angle - 1000372310×1
- 251000326518Not stockedflat head screw×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- 271000315345Not stockedplug×1
- 281000068993Not stockedplug×2
- Sensor - 1000282375×1
- 301000343890Not stockedseal ring×1
