ET90

ET90 dipper arm cylinder Diagram

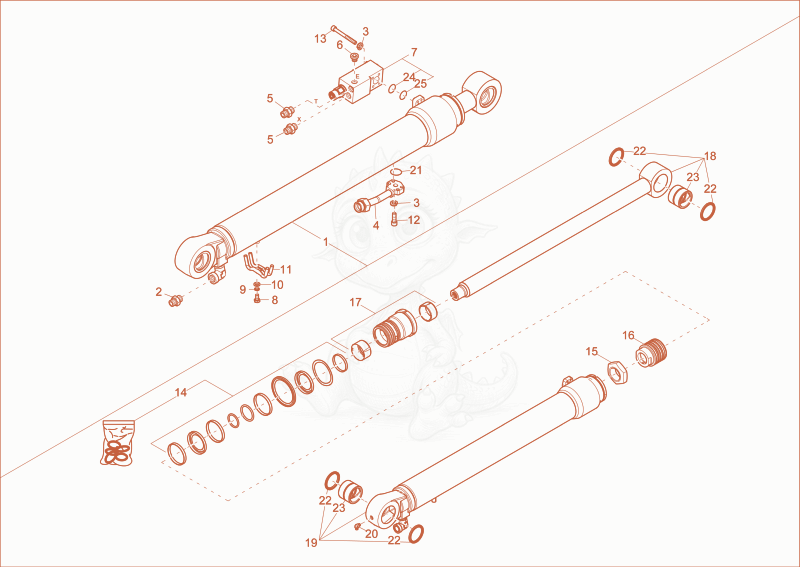

Exploded parts diagram of the dipper arm cylinder of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000313453Not stocked
    dipper arm cylinder×1
  • 21000085118Price
    GE25SR3/4" EDOMDA3C - 1000085118×1
  • 31000082624Price
    spring washer - 1000082624×8
  • 41000126004Price
    TUBE - 1000126004×1
  • 51000015490Not stocked
    screw joint×2
  • 61000022438Not stocked
    screw joint×1
  • 71000306094Not stocked
    hose burst valve×1
  • 81000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 91000015438Not stocked
    lock washer×1
  • 101000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 111000329856Not stocked
    bracket hose×1
  • 121000085497Price
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
  • 131000085467Price
    cheese head screw - 1000085467×4
  • 141000286244Price
    cylinder seal kit - 1000286244×1
  • 151000286245Price
    set nut - 1000286245×1
  • 161000286263Price
    Piston 1000286263×1
  • 171000286262Price
    Guidebushing 1000286262×1
  • 181000339187Not stocked
    piston rod×1
  • 191000339188Not stocked
    cylinder housing×1
  • 201000082861Price
    WE06LLR1/8A3CX - 1000082861×1
  • 211000015678Price
    O-RING - 1000015678×2
  • 221000286250Price
    pin gasket - 1000286250×2
  • 231000286261Price
    steel bushing - 1000286261×4
  • 241000090469Price
    O-RING - 1000090469×1
  • 251000406200Price
    support ring - 1000406200×1
