ET90

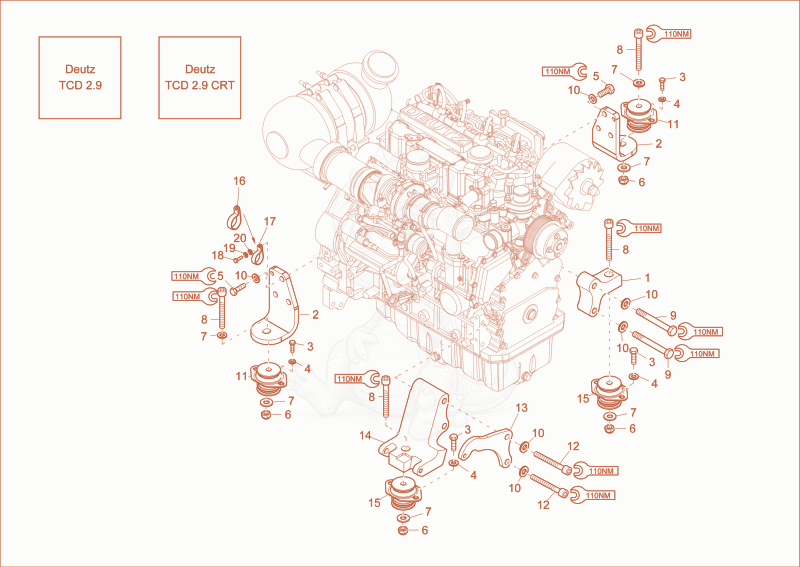

ET90 Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000325385Not stocked
    mounting bracket×1
  • 21000325092Not stocked
    mounting bracket×2
  • 31000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
  • 41000082678Price
    NORTHLOCK DISC - 1000082678×8
  • 51000015381Not stocked
    hex screw×7
  • 61000020127Not stocked
    hexagon nut×4
  • 71000082638Price
    washer 13 -DIN134 - 1000082638×6
  • 81000085515Price
    cheese head screw - 1000085515×4
  • 91000085370Price
    hex screw - 1000085370×2
  • 101000094970Price
    Nord-Lock disc NL12x25,4 - 1000094970×10
  • 111000344883Not stocked
    hydro.bearing×2
  • 121000085516Price
    cheese head screw - 1000085516×2
  • 131000331361Price
    holder - 1000331361×1
  • 141000333584Not stocked
    mounting bracket×1
  • 151000344882Not stocked
    hydro.bearing×2
  • 161000062543Not stocked
    pipe clamp×1
  • 171000083280Price
    HOSE CLAMP - 1000083280×1
  • 181000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 191000015438Not stocked
    lock washer×1
  • 201000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
