ET145

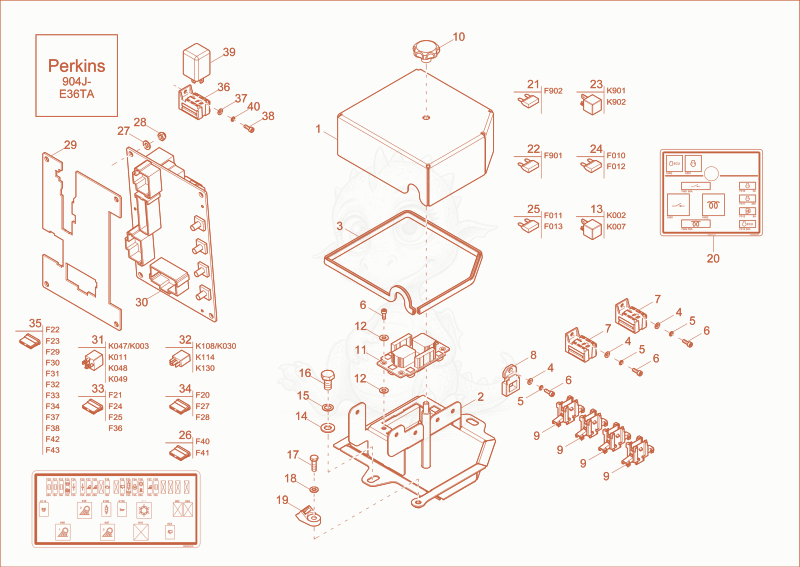

ET145 RELAY BOX (OPTION) Diagram
- cover - 1000447453×1
- bracket - 1000434455×1
- edge protection - 1000097928×0.8
- washer 4,3 DIN125 - 1000094961×3
- lock washer - 1000082612×3
- socket head screw M4x12 8.8 A2C DIN912 - 1000082428×6
- SOCKETS - 1000026977×3
- 81000027144Not stockedfixing bracket×1
- Bracket - 1000027193×4
- 101000015429Not stockedstarhandle nut×1
- platine - 1000284386×1
- 121000328450Not stockedwasher×8
- 131000353650Not stockedrelay×2
- washer 10,5 A2C DIN125 - 1000015432×2
- 151000015438Not stockedlock washer×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- 171000018400Not stockedhex screw×1
- 181000015430Not stockedu-washer×1
- 191000398401Not stockedsockets×1
- sticker - 1000468344×1
- FUSE - 1000015298×1
- FUSE - 1000098668×1
- 231000353649Not stockedrelay×2
- FUSE-Mini - 1000186026×2
- FUSE-MINI - 1000247967×2
- fuse - 1000095374×2
- 271000310873Not stockedwasher×4
- HEXAGON NUT - 1000085587×4
- 291000352521Not stockedrubber mat×1
- 301000358966Not stockedelectric×1
- 311000353650Not stockedrelay×4
- 321000333390Not stockedrelay×3
- FUSE - 1000085683×6
- FUSE - 1000085684×3
- fuse - 1000085682×12
- SOCKETS - 1000026977×1
- washer 4,3 DIN125 - 1000094961×1
- socket head screw M4x12 8.8 A2C DIN912 - 1000082428×1
- 391000423239Not stockedMicro SPS CAN E14 LOAD×1
- lock washer - 1000082612×1
