ET145

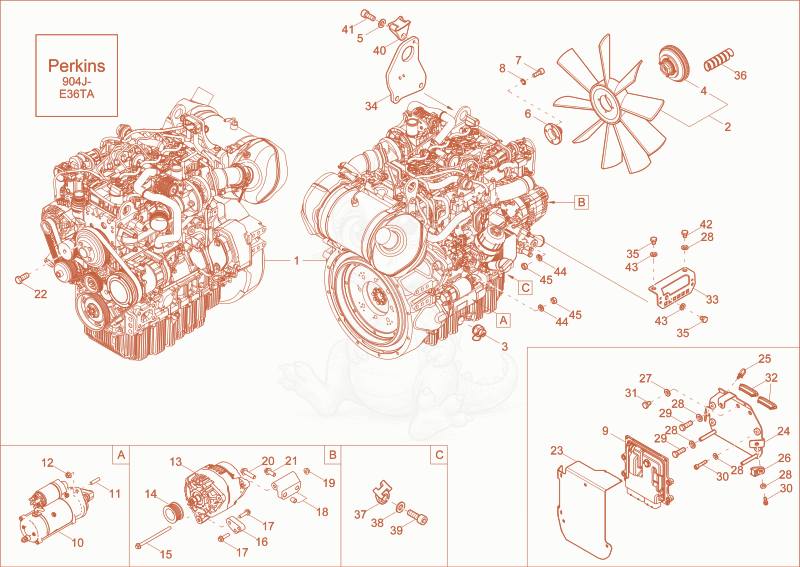

ET145 diesel engine (Option) Diagram
- 11000409457Not stockeddiesel engine×1
- ventilator fan - 1000388063×1
- 31000419135Not stockedcontrol valve×1
- 41000388090Not stockedvisco coupling×1
- 51000015431Not stockedwasher×1
- adapter ventilator - 1000410909×1
- 71000019450Not stockedcheese head screw×4
- 81000015437Not stockedlock washer×4
- 91000448112Not stockedCONTROL×1
- starter - 1000437062×1
- Stud bolt - 1000088184×3
- Nut - 1000087576×3
- 131000389161Not stockedgenerator×1
- 141000448261Not stockedbelt pulley×1
- Screw - 1000130639×1
- bracket - 1000448134×1
- Screw - 1000130912×3
- bracket - 1000448135×1
- 191000088186Not stockednut×1
- Screw - 1000256910×1
- Screw - 1000137695×1
- screw - 1000448097×4
- 231000481474Not stockedprotection plate×1
- bracket - 1000481523×1
- 251000090083Not stockedcable strap×2
- sockets - 1000282738×2
- washer M10-DIN134 - 1000094974×2
- washer M6,4-DIN134 - 1000094966×9
- 291000020553Not stockedhex screw×2
- 301000015369Not stockedcheese head screw×6
- 311000013009Not stockedhex screw×2
- rubber profile - 1000097922×0.2
- bracket - 1000416828×1
- 341000475029Not stockedlift eye×1
- 351000019136Not stockedhex screw×2
- winder pipe - 1000142589×0.2
- 371000373433Not stockedsockets×1
- washer 10,5 A2C DIN125 - 1000015432×1
- 391000015376Not stockedcheese head screw×1
- 401000357426Not stockedsockets×1
- 411000019593Not stockedcheese head screw×1
- HEX SCREW - 1000085382×1
- 431000015448Not stockedwasher×2
- 441000015444Not stockedspring washer×2
- 451000015405Not stockedhexagon nut×2
