ET145

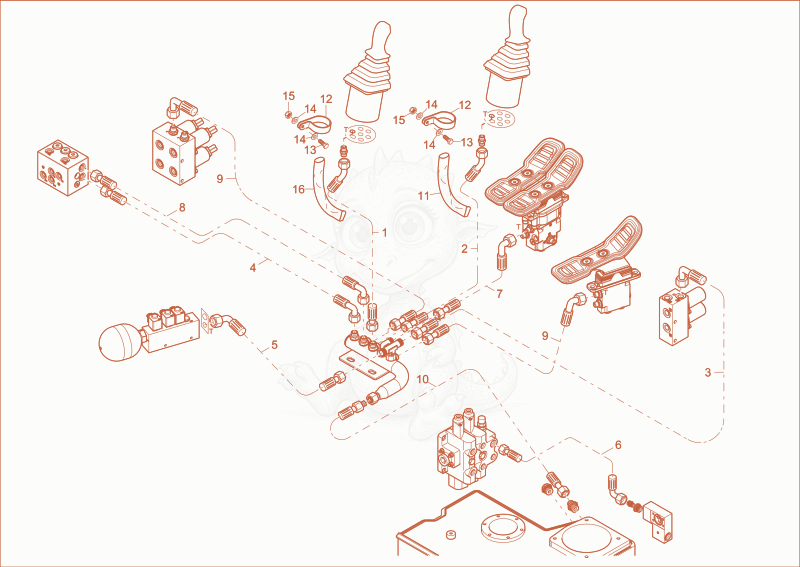

ET145 TANK LINES 1 Diagram

Exploded parts diagram of the TANK LINES 1 of a Wacker Neuson ET145, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000252925Price
    SLHYDR 1SCP6,0PN8 0 PN8 45 L2300 0 - 1000252925×1
  • 21000076536Not stocked
    Hose×1
  • 31000016759Not stocked
    Hose×1
  • 41000076578Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L250,0 0 - 1000076578×1
  • 51000076333Not stocked
    Hose×1
  • 61000254720Price
    SLHYDR 1SC 19 PN22 90 PN22 0 L370,0 0 - 1000254720×1
  • 71000021499Not stocked
    Hose×1
  • 81000125195Not stocked
    Hose×1
  • 91000076662Not stocked
    Hose×2
  • 101000233293Price
    SLHYDR 1SC 10 PN12 0 PD12 0 L1600 0 - 1000233293×1
  • 111000097905Price
    protecting hose - 1000097905×0.95
  • 121000083250Price
    hose clamp - 1000083250×2
  • 131000015343Not stocked
    hex screw×2
  • 141000013027Not stocked
    washer×4
  • 151000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 161000097905Price
    protecting hose - 1000097905×0.95
