CRT60-74L

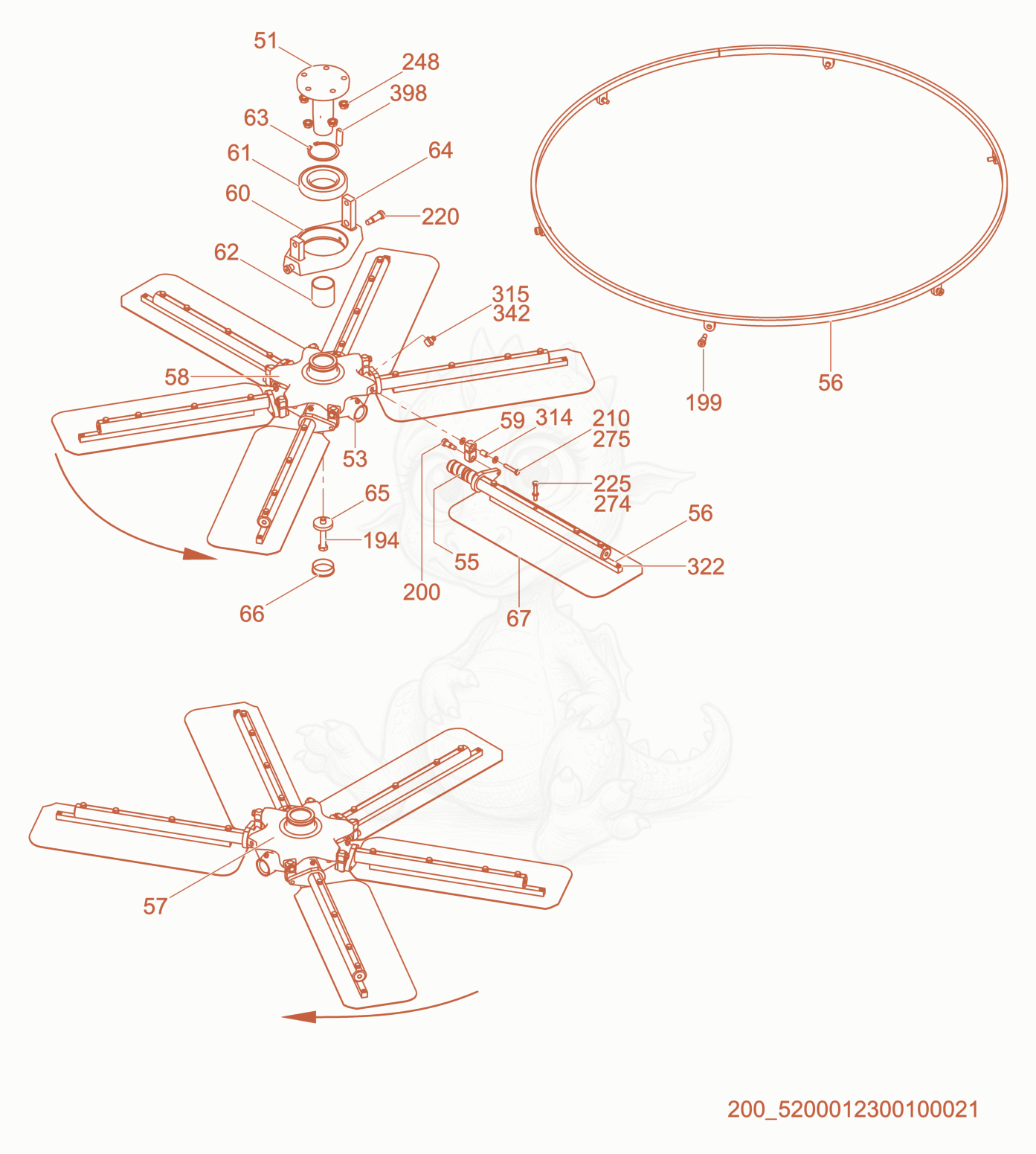

CRT60-74L Blade Mechanism-Right & Left Diagram

Exploded parts diagram of the Blade Mechanism-Right & Left of a Wacker Neuson CRT60-74L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 515000182640Price
    SHAFT-TAPER STUB ADAPTER - 5000182640×1
  • 535100025349Not stocked
    Kit-Spider hub×1
  • 555000181068Price
    SHAFT ASSEMBLY P-5000176420 - 5000181068×6
  • 565000163239Not stocked
    Stabilizer ring×1
  • 575000163217Price
    RING-LIFT,LT - 5000163217×1
  • 585000163218Price
    RING-LIFT,RT - 5000163218×1
  • 595000116898Price
    LINK-ADJUSTABLE(CRT) - 5000116898×6
  • 605000163232Price
    HOLDER-BEARING - 5000163232×1
  • 615000180042Price
    BEARING-BALL - 5000180042×1
  • 625000180043Price
    BUSHING-LIFT RING - 5000180043×1
  • 635000180044Not stocked
    Retaining ring×1
  • 645000180077Not stocked
    Pitch link×2
  • 655000182642Price
    WASHER-HUB - 5000182642×1
  • 665000180086Not stocked
    Plug cap×1
  • 675000183277Price
    BLADE-KIT,4 COMBO,60 - 5000183277×3
  • 1945200003321Price
    Screw M14 X 90, HX HD, 10.9 - 5200003321×2
  • 1995000073458Price
    SCREW 1/2 x 1/2,SHOULDER - 5000073458×6
  • 2005000116752Price
    SCREW 1/2X3/4X1-3/8 SHOULD,SOC - 5000116752×6
  • 2105000117969Price
    SCREW M8 X 45 10.9 HXHD - 5000117969×6
  • 2205000193973Price
    Screw-Shldr,5/8-1.25,Soc.Hd.Alloy St. - 5000193973×2
  • 2255000025550Price
    SCREW 5/16-18 X 2,HX.HD. - 5000025550×24
  • 2485000186621Price
    Nut, Flange 1/2-20 Hex Grade 8 - 5000186621×5
  • 2745000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×18
  • 2755000033198Price
    WASHER-LOCK B8 - 5000033198×12
  • 2795000119289Price
    WASHER 13 FLAT TP200 - 5000119289×5
  • 3145000188369Price
    SPACER-LIFT RING - 5000188369×6
  • 3155000036607Price
    FITTING-GREASE AM10 - 5000036607×6
  • 3225000074985Price
    PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×6
  • 3425000155804Price
    CAP-GREASE FITTING,RED - 5000155804×6
  • 3985000188123Price
    Key-9x14,Heat Treated - 5000188123×1
