CRT60-74L

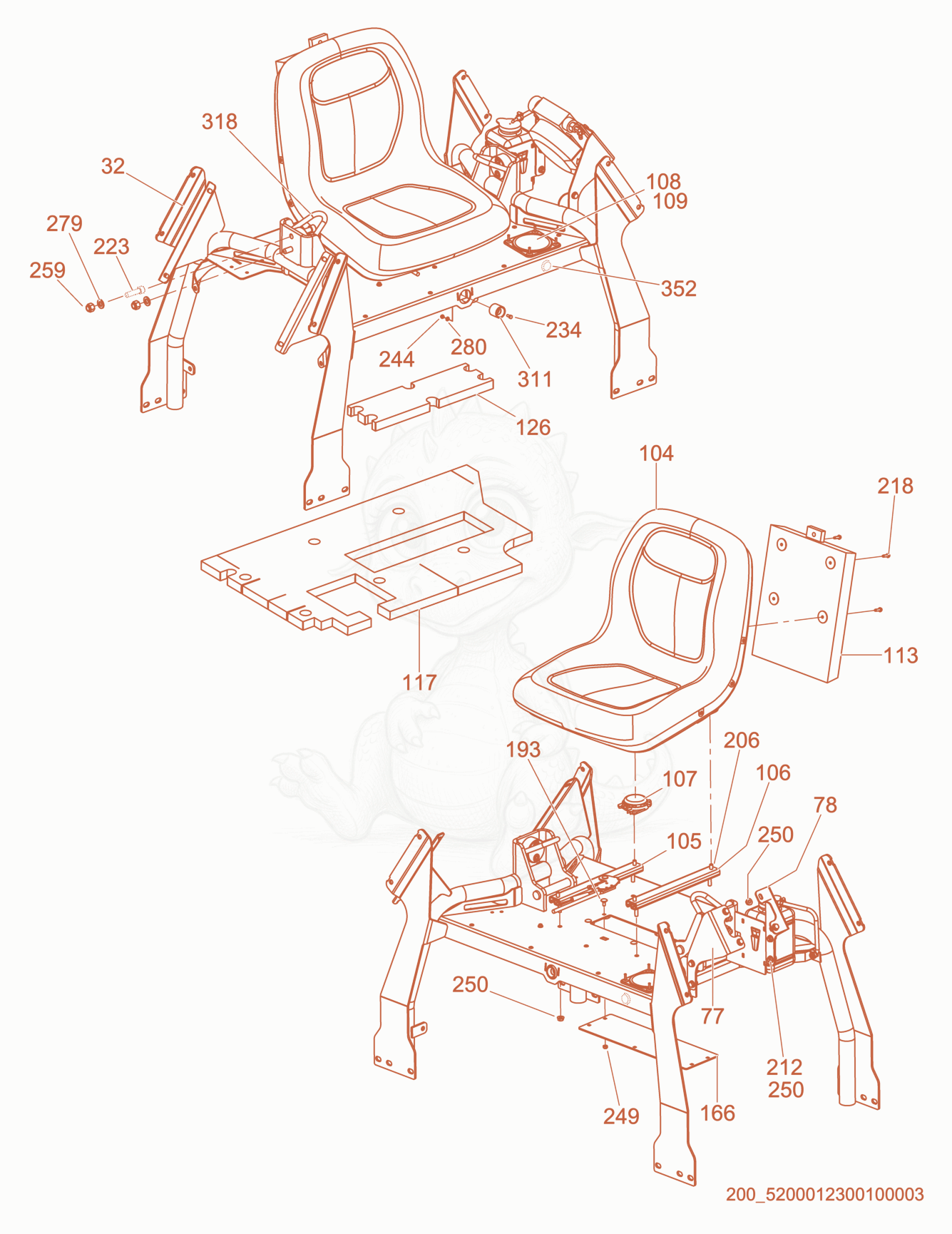

CRT60-74L Seat Assembly Diagram
- Bracket-Cooler Mount,Frnt P-5000176420 - 5200015732×1
- Bracket-Cooler Mount,Rear P-5000176420 - 5200015733×1
- Seat - Operator, CRT - 5200000227×1
- 1055000164485Not stockedBracket×1
- 1065000165594Not stockedBracket×1
- SWITCH-SEAT - 5000164603×1
- INSERT-CUP HOLDER - 5000116585×1
- RIVET-NYLON DRIVE - 5000152696×4
- HOLDER-MANUAL - 5000083220×1
- 1175200015483Not stockedInsulator×1
- 1265200013431Not stockedInsulator×1
- 1665200013432Not stockedPlate×1
- 1935000111323Not stockedCarriage bolt×6
- SCREW M8 X 16 SOC.HD. - 5000011544×4
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
- SCREW #10X3/4,TYP B,SLT FLG HX - 5000155497×4
- 2235000180849Not stockedSocket head cap screw×4
- SCREW M5 X 12 HX.HD. - 5000011477×1
- NUT-LOCK M5 HEX. - 5000010369×1
- NUT-LOCK M6 HEX. - 5000010368×6
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×7
- NUT-LOCK 1/2-20,HEX(W/NYLON) - 5000117632×4
- WASHER 13 FLAT TP200 - 5000119289×4
- WASHER B5.3 FLAT - 5000010625×2
- 3115000192831Not stockedLatch×1
- 3185200004254Not stockedLift ring×2
- 3525200001770Not stockedGrommet×1
