Excavator 6503

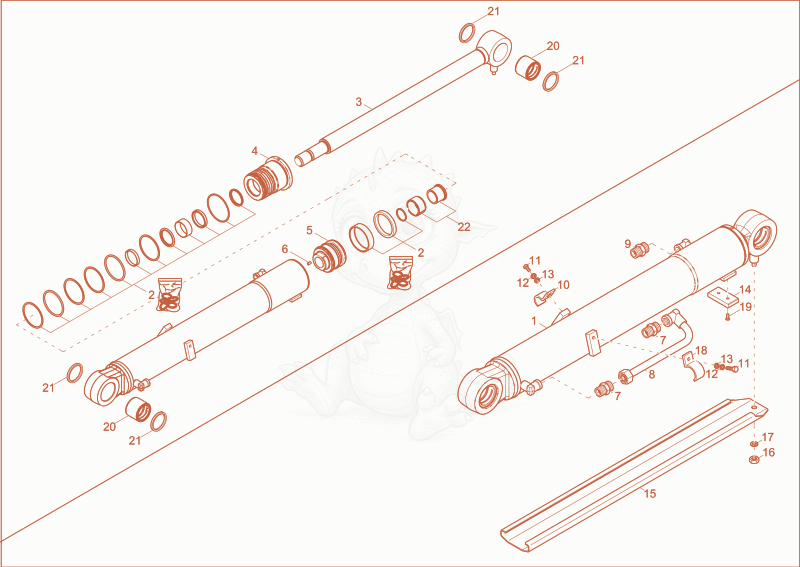

6503-2 boom cylinder Diagram
- Liftingarmcylinder 1000276935×1
- cylinder seal kit - 1000127080×1
- Pistonrod 1000155921×1
- Bushing 1000277638×1
- Piston 1000127084×1
- 61000015374Not stockedthread pin×1
- GE18LR1/2EDOMDA3C - 1000082979×2
- cylinder pipes assy. - 1000116899×1
- 91000015494Not stockedscrew joint×1
- 101000015633Not stockedpipe clamp×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
- 121000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×2
- guide-element - 1000146695×1
- Protectingrail 1000107892×1
- 161000020127Not stockedhexagon nut×1
- 171000049219Not stockedwasher×1
- 181000015634Not stockedpipe clamp×1
- 191000015373Not stockedcountersunk screw×2
- 201000015601Not stockedsteel bushing×2
- 211000015709Not stockedpin gasket×4
- shock absorber - 1000155934×1
