Excavator 6503

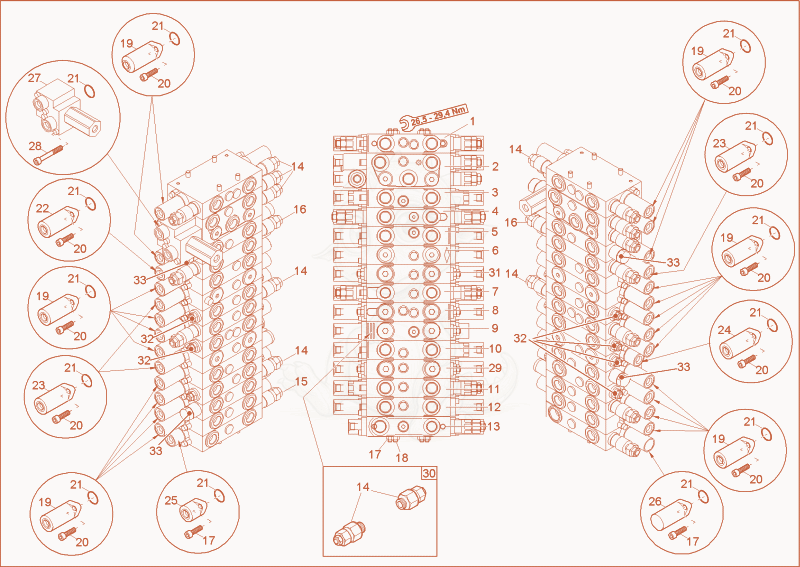

6503-2 CONTROL VALVE 2 (OPTIONAL) Diagram
- Bucketsegment 1000126616×1
- Liftingboomsegment 1000126598×1
- 31000158542Not stockedtravel segment×1
- Inputsegment 1000125160×1
- Travelsegment 1000125181×1
- Liftingboomsegment 1000126599×1
- Bucketsticksegment 1000126600×1
- Supplyhydraulicsegment 1000125183×1
- Exitsegment 1000125185×1
- Swivelsegment 1000126611×1
- 111000125189Not stockeddozer blade segment×1
- Rotarysegment 1000125190×1
- Cauxiliarysegment 1000125201×1
- 141000069344Not stockedsecondary cartridge×9
- main pressure limiter - 1000126612×1
- main pressure limiter - 1000126613×2
- NUT - 1000125226×8
- TIE ROD - 1000145833×4
- valve cap - 1000125205×19
- SCREW - 1000125206×54
- O-RING - 1000021889×28
- valve cap - 1000125208×1
- 231000125209Not stockedvalve cap×3
- valve cap - 1000125210×1
- valve cap - 1000125223×1
- 261000125222Not stockedvalve cap×1
- Loadkeepingvalve 1000126597×1
- SCREW - 1000126594×5
- segment - 1000158540×1
- retrofit kit shockcartridge - 1000143244×1
- SEGMENT - 1000127129×1
- block valve - 1000152582×7
- 331000069360Not stockednon return valve×4
