Excavator 6503

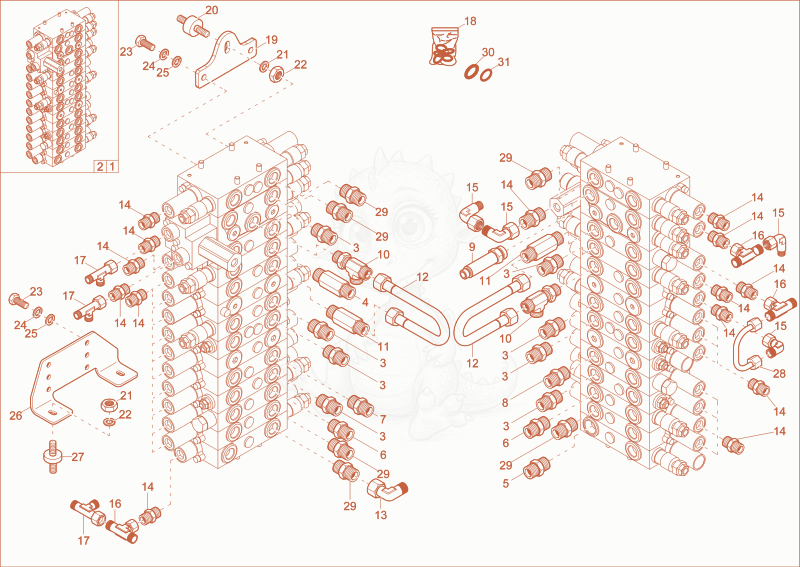

6503-2 CONTROL VALVE 1 (OPTION) Diagram
- Controlblock 1000150810×1
- 21000158149Not stockedvalve block×1
- GE18LR1/2OROMDA3C - 1000083048×8
- GE18LR1/2OROMDA3C L=92MM - 1000132878×1
- GE22LR3/4OROMDA3C - 1000082977×1
- GE12LR1/2OROMDA3C - 1000082970×2
- GE08LR1/2OROMDA3C - 1000128862×1
- GE10LR1/2OROMDA3C - 1000141556×1
- 91000112355Not stockedscrew connection×1
- 101000124373Not stockedscrew joint×2
- EXTENSION - 1000149469×2
- pipe bow - 1000149468×2
- 131000015512Not stockedscrew joint×1
- GE08LR1/4OROMDA3C - 1000082963×28
- EW08LOMD - 1000000542×4
- ET08LOMDA3C - 1000015518×3
- 171000015515Not stockedscrew joint×3
- seal kit control valve - 1000126669×1
- fasten plate - 1000108286×1
- 201000079864Not stockedrubber buffer×1
- 211000015434Not stockedwasher×3
- nut M10-8 A2C-DIN985 - 1000015408×3
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 251000015438Not stockedlock washer×4
- Anglebracket 1000110307×1
- 271000132877Not stockedrubber buffer×2
- pipe bow - 1000149467×1
- GE15LR1/2OROMDA3C - 1000082964×6
- 301000481691Not stockedo-ring×1
- 311000481693Not stockedo-ring×1
