Excavator 6503

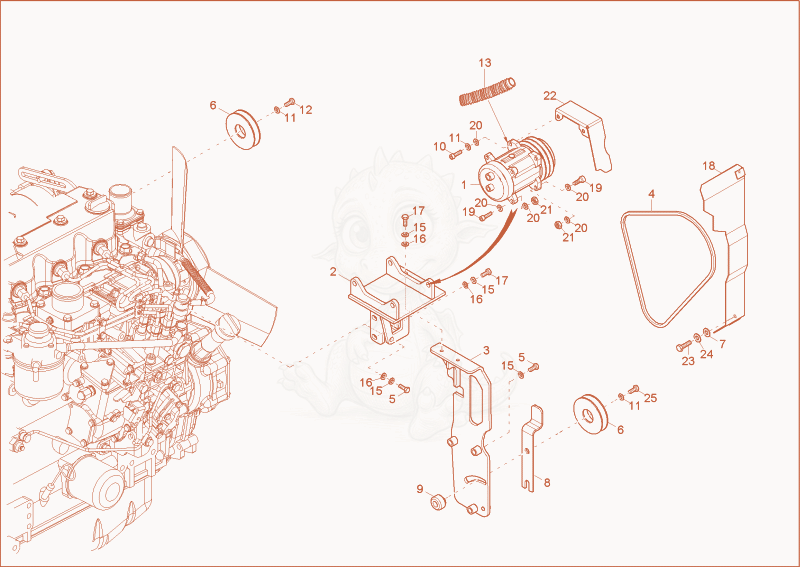

6503-2 ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram
- 11000106938Not stockedcompressor aircondition×1
- 21000109409Not stockedconsole aircond.compressor×1
- 31000123956Not stockedconsole aircond.compressor×1
- 41000177944Not stockedv-belt×1
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×4
- belt pulley - 1000166533×2
- washer A 6,4 St A2C DIN9021 - 1000095343×2
- CLAMPING STRAP - 1000109291×1
- 91000021727Not stockedslide nut×1
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
- 111000015438Not stockedlock washer×4
- 121000015346Not stockedhex screw×1
- cable hose - 1000097882×0.35
- 151000015437Not stockedlock washer×8
- 161000015431Not stockedwasher×5
- 171000013008Not stockedhex screw×4
- fan protection - 1000154931×1
- cheese head screw - 1000085469×4
- washer 10,5 A2C DIN125 - 1000015432×10
- nut M10-8 A2C-DIN985 - 1000015408×4
- 221000383445Not stockedcover×1
- HEX SCREW - 1000085382×2
- 241000015436Not stockedlock washer×2
- hex screw - 1000085413×1
