Excavator 6503

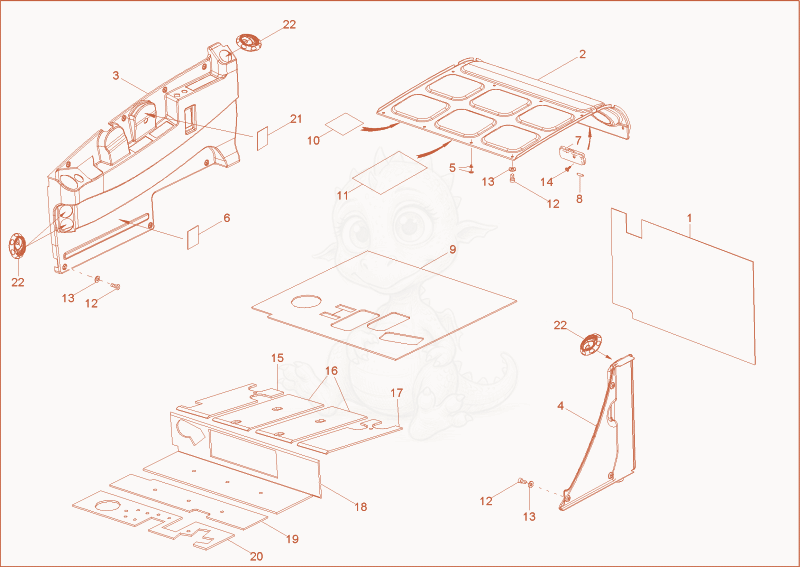

6503-2 COVERING Diagram

Exploded parts diagram of the COVERING of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000180037Price
    Rearplatetrim 1000180037×1
  • 21000109621Not stocked
    roof trim×1
  • 31000149145Not stocked
    side trim×1
  • 41000105224Not stocked
    side trim×1
  • 51000265274Price
    SPREAD RIVET - 1000265274×6
  • 61000080720Price
    sticker 'security' - 1000080720×1
  • 71000003334Not stocked
    Dome Light×1
  • 81000085712Price
    bulb - 1000085712×1
  • 91000157600Price
    FLOOR RUBBER MAT - 1000157600×1
  • 101000081066Price
    sticker safe stop - 1000081066×1
  • 111000149898Price
    STICKER 'SECURITY' - 1000149898×1
  • 121000165459Price
    screw M6x12 ISO7380-2 - 1000165459×16
  • 131000233504Price
    washer - 1000233504×16
  • 141000085560Not stocked
    ovalhead screw×2
  • 151000135563Price
    insulating mat - 1000135563×1
  • 161000135573Price
    insulating mat - 1000135573×2
  • 171000135579Price
    Insulatingmat 1000135579×1
  • 181000157651Price
    INSULATING MAT - 1000157651×1
  • 191000157652Price
    INSULATING MAT - 1000157652×1
  • 201000157653Price
    insulating mat - 1000157653×1
  • 211000080785Price
    sticker rpm p - 1000080785×1
  • 221000034829Not stocked
    air nozzle×4
