WL950

WL950(A05-01) Suction flange Diagram

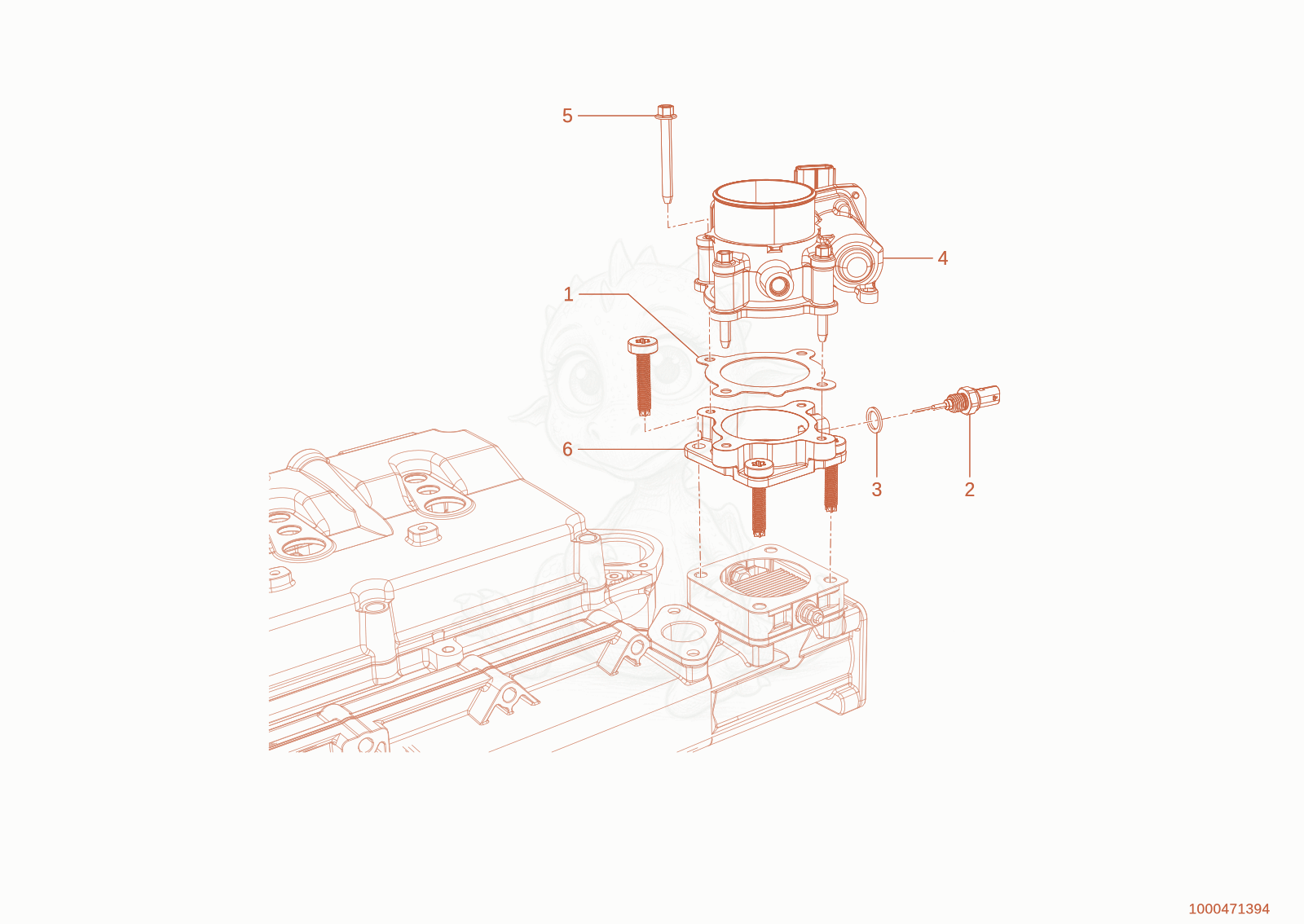

Exploded parts diagram of the Suction flange of a Wacker Neuson WL950(A05-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000471105Not stocked
    seal×1
  • 21000471106Price
    sensor - 1000471106×1
  • 31000470041Not stocked
    seal ring×1
  • 41000473896Price
    case - 1000473896×1
  • 51000471111Price
    screw - 1000471111×4
  • 61000471112Price
    Flange - 1000471112×1
